*GPS function ( Optional )
*Compatible with Mototrbo Tier &. Complying with digital protocol ETSI TS 102 361-1, -2, -3 and all other DMR radios.
*Support quick text message.
*Use transflective LCD displays so that users can read under the sunlight.
*Compatible with TYT MD-380’s CodePlug
*IP67 waterproof dustproof
*Private/Group/All Call
Main Features:
Remote kill/stun/activate
Voice prompt
Power-on protection
Color LCD display
Text messages in digital mode
Encryption function
Built-in CTCSS/DCS
Priority scan
Complying with digital protocol ETSI TS 102 361-1, -2, -3
Compatible with Mototrbo Tier &
DTMF decoding and encoding
Updated software available for new features
Private call, group call, all call in digital mode
Operate in both Digital & Analogue mode, easily migrate from analog to digital
Provide clearer voice communications in digital mode, throughout the coverage area
Frequency Range:?Dual Band?VHF 136-174Mhz/UHF 400-480MHz
Output power: High: 5W Low: 1W
Channel: 3000
Channel spacing: 12.5KHz
Operating voltage: 7.4V
Battery capacity: 2200mAh Li-ion battery
Antenna Impedance: 50 ohms
Output Power: 1W – 5W
Adjacent Channel Power: Less than – 60dB
Free Time Slot Power: TDMS: Less than 57dBm
Hum and Noise: – 40dB, 12.5KHz
FM Modulation Mode: 12.5KHz
Modulation Slot Power: 2.5KHz – 12.5KHz
Nonactive Slot Power: – 57dBm
Vocoder Type: AMBE + 2TM
Modulation BER: Less than 5pct
Analog Sensibility: 0.35uV / – 116dBm ( 20dB SINDA ), 0.22uV / – 120dBm ( Type )
Co-channel Sensibility: More than -12dB
Rated Audio Power: 1W
Audio Response: 1dB – 3dB
Rated Audio Distortion: 3pct
Standard Package Includes the Following Items:

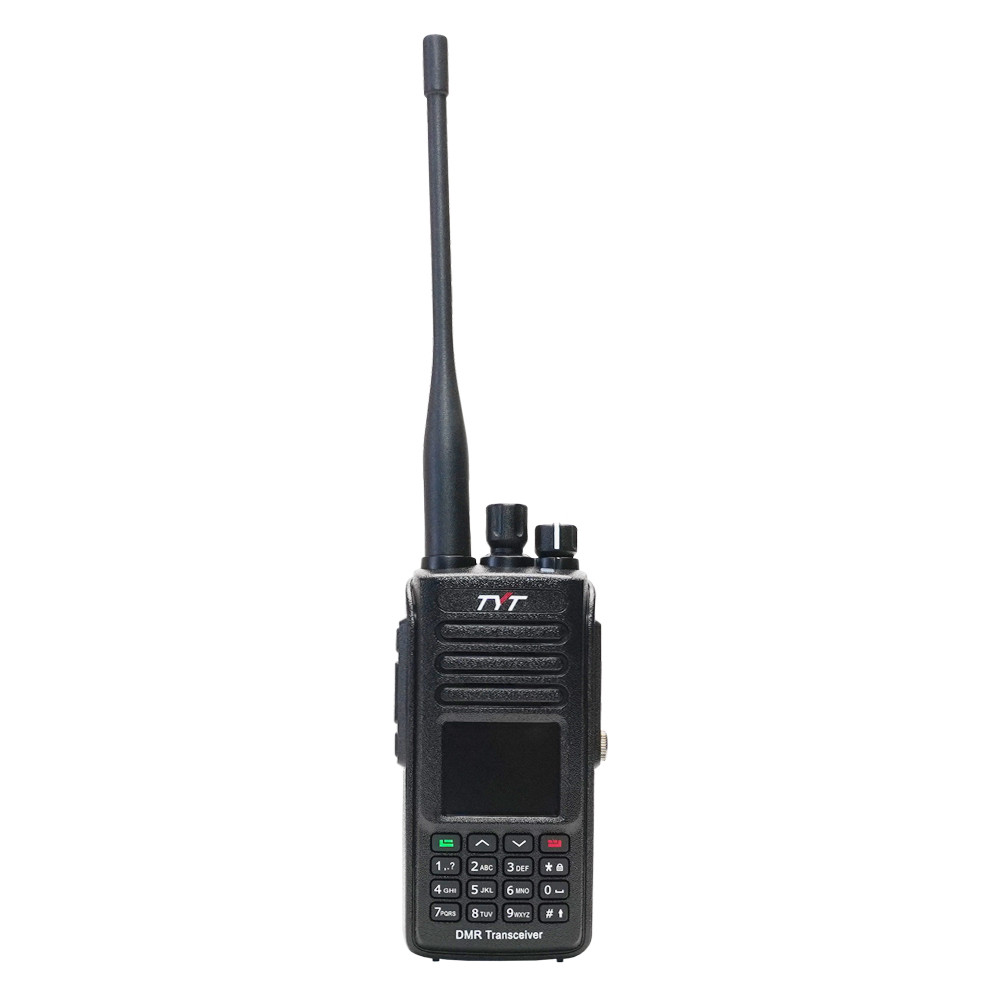

1x DMR Digital Radio
1x High Gain Antenna ( Longer )
1x Common antenna ( Shorter )
1x Battery 2200mAh Li-ion
1x Belt Clip
1x Desktop Charger
1x Adapter ( Provided According to Your Country )
1x User Manual
Note:
If you order other accessories like programming cable, car charger etc., we will send together to you.
