- Output Power(w):5w-10w
- Battery Capacity(mAh):3200mAh
- Waterproof / Water-Resistant:IP55
- Material:Plastic
- Storage Channel:200
- Frequency Range:136-174MHz & 400-480MHz
- Dimensions:131*61*34mm
- Model Number:UV98
- Walkie Talkie Type:Portable
- Is_Display:Yes
- Maximum Range:5km-10km
- Brand Name:BAOFENG
- Origin:?Mainland China
- Certification:CE,FCC,RoHS
- Weight:226g
- Transmit Power Max:10 W
Features:
- VHF 136-174MHz & UHF 400-480MHz
- DOT-MATRIX LCD display
- A/B band storage and scanning
- FM radio and 24 station memory
- Wide/Middle/Narrow band selectable
- VOX 0-7 grade setting
- Shortcut menu operation mode
- Emergency alert
- ANI Function
- DTMF encoding and decoding
- Multiple types of keys lock setting
- Multi-display mode
- Remote stun/Kill/active
- Dual Band, Dual wait, Dual standby
- 200 Channels
- Battery Saving
- 8 groups of Scrambler
- 1750Hz tone
- 2 Tone/ 5 Tone
- CTCSS/DCS
Specifications:
|
General |
|
|
Frequency Range |
136-174MHz & 400-480MHz |
|
Frequency Stability |
2.5PPm |
|
Operating Voltage |
DC7.4V (Rechargeable Li-ion battery) |
|
Channel Number |
200 |
|
Antenna |
SMA-Male High gain antenna |
|
Antenna Impedance |
50 ohm |
|
Mode of Operation |
Simplex or semi-duplex |
|
Battery Capacity |
3200mAh |
|
Receiver |
|
|
RF Sensitivity |
-122dBm(12dB SINAD) |
|
Audio power |
>0.5W |
|
Audio distortion |
<10% |
|
Blocking |
85dB |
|
Intermediation |
55dB |
|
Selectivity |
60dB |
|
Spurious rejection |
65dB |
|
Transmitter |
|
|
Output Power |
10W |
|
Modulation Mode |
16KF3E/11KF3E |
|
Maximum deviation |
<5KHz/<2.5KHz |
|
Adjacent Ch.Power |
-65dB |
|
Spurious radiation |
<7W |
|
Pre-emphasis characteristics |
6dB |
|
Current |
2.8A(10W) 1.4A(5W) |
|
CTCSS/DCS deviation |
0.55KHz 0.15KHz, 0.4KHz 0.1KHz |
|
Intermediation sensitivity |
8-12mV |
|
Intermediation distortion |
<5% |

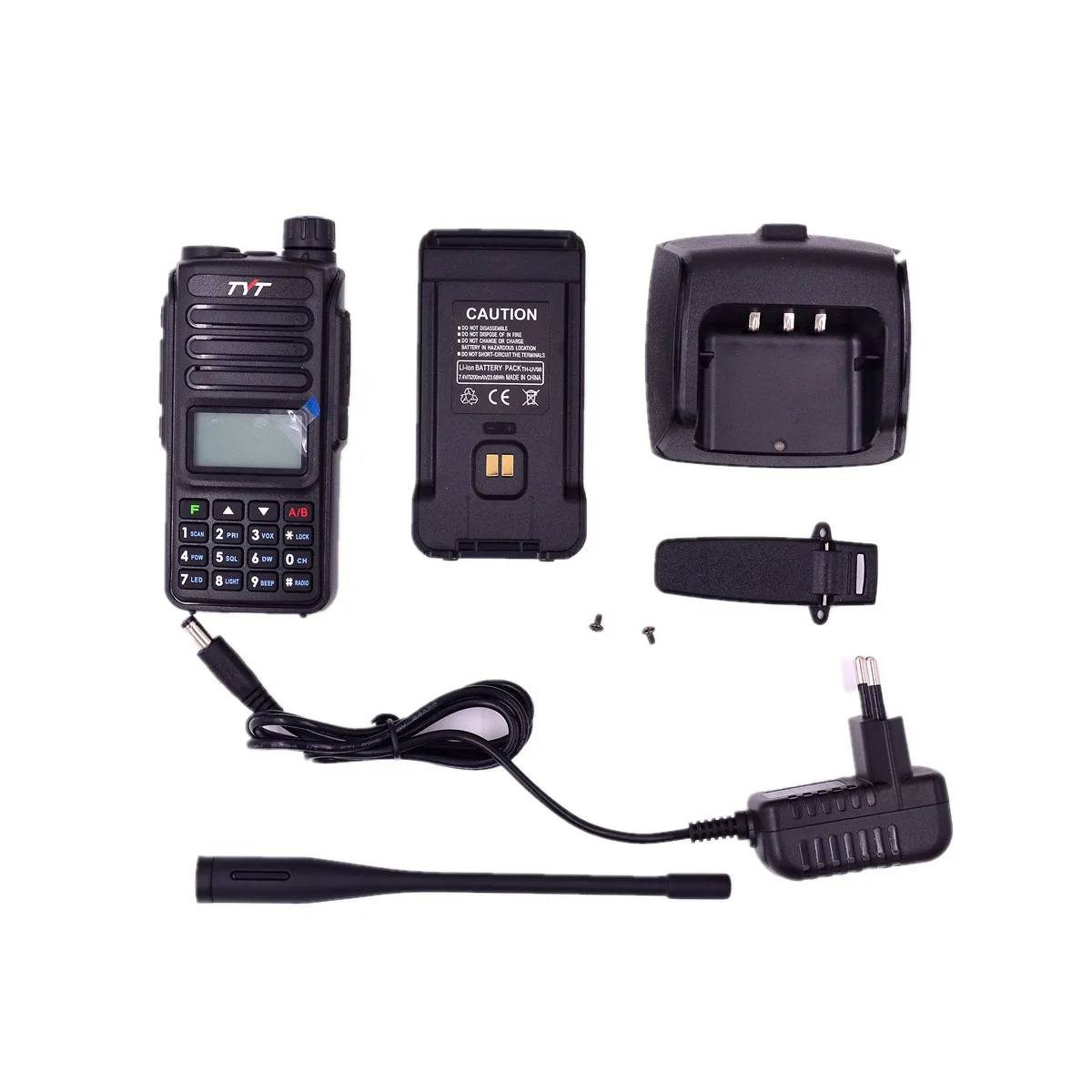

Package Contains:
1TYT TH-UV98 Dual band radio?

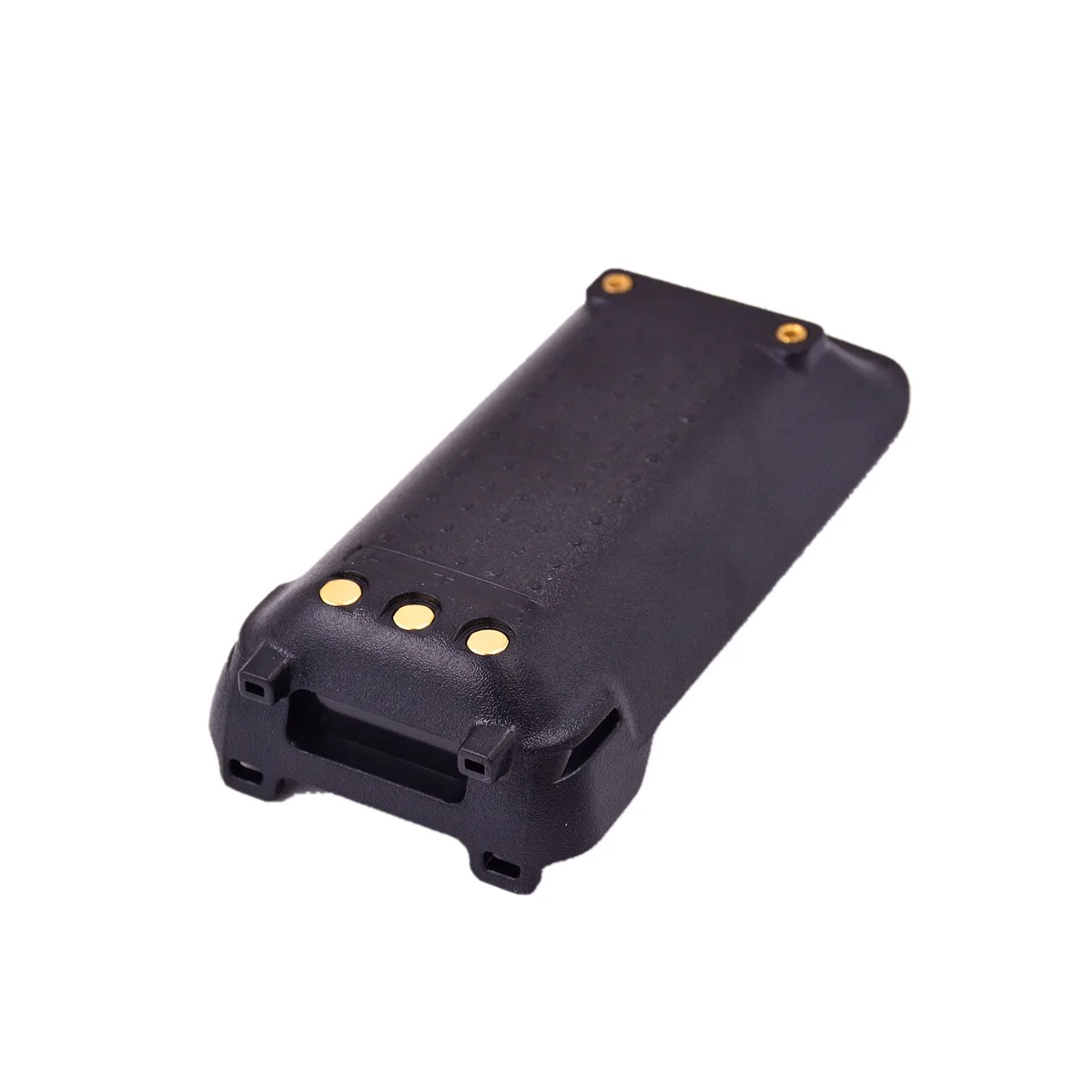

17.4V 3200mah Li-ion Battery Pack
1SMA-Male Standard Antenna
1 Battery belt clip
1Charger
1ENG Manual
??
??
