- Output Power(w):5w-10w
- Battery Capacity(mAh):2200
- Waterproof / Water-Resistant:IP67
- Material:Plastic
- Storage Channel:16
- Frequency Range:400-470MHz
- Dimensions:140*63*32mm
- Model Number:MD-680
- Walkie Talkie Type:Portable
- Is_Display:No
- Maximum Range:5km-10km
- Brand Name:TYT
- Origin:Mainland China
- Color:Black
- Net Weight:300g(with battery)
DMR Walkie Talkie 10KM TYT MD-680 UHF 400-470MHz 10Watt IP67 Waterproof 16Ch DMR DIGITAL portable TWO WAY RADIO
Features:
It applies advanced TDMA digital technology, a digital radio that reserves analog mode for flexible uses.
Up to 10W high power two-way radio, featuring further communication range.
2200Mah large capacity battery lasts for longer working time: Analog 15hours, Digital 25hours.
IP 67 water resistant level, durable and solid to work under complicated environments.
Specifications:
|
General |
|
| Frequency Range | 400-470MHz |
| Memory Channel | 16 |
| Working Voltage | 7.2V |
| Working Temperature | -30~+60 |
| Storage Temperature | -40~+80 |
| Continuous Working Time | Analog:15hours
Digital:25 hours |
| Battery Capacity | 2200mAh |
| Channel Space | 12.5KHz |
| Dimensions | 140*63*32mm |
| Net weight | 300g(with battery) |
|
Receiver |
|
| Frequency Stability | ??1.0ppm |
| Analog Sensibility | 0.35uV/-116dBm (20dB SINAD)
0.22uV/-120dBm(Typical) |
| Digital Sensibility | 0.3uV/-117.4dBm(BER 5%)
0.22Uv/-110DbM(BER 1%) |
| Spurious response | TIA03C:65dB
ETSI:65dB |
| Adjacent channel selectivity | TIA603C:[email protected]
ETSI: [email protected] |
| Spurious response suppression | TIA603C:70Db etsi:70dB |
| Receiving spurious emissions | ??-57dBm@1GHz |
| Blocking | 84dB |
| Rated Audio Power | 1W |
| Audio response | +1Db~-3dB |
| Rated audio distortion | 3% |
|
Transmitter |
|
| Power Output | High:10W, Low:1W |
| FM Noise | [email protected] |
| Spurious emission | -36dBm@1GHz |
| Adjacent channel selectivity | [email protected] |
| FM Modulation | 12.5KHz:11K ?? F3E |
| 4FSK digital modulation mode | 12.5KHz(data only):7K60FXD
12.5KHz(data and voice): 7K60FXW |
| Modulation limit | [email protected] |
| Audio response | +1dB~-3dB |
| Rated Audio distortion | 3% |
| Digital Protocol | ETSITSI02361-1,-2-3 |
| Vocoder Type | AMBE+2TM |
Note: Specifications will be revised without notice due to technical improvement.

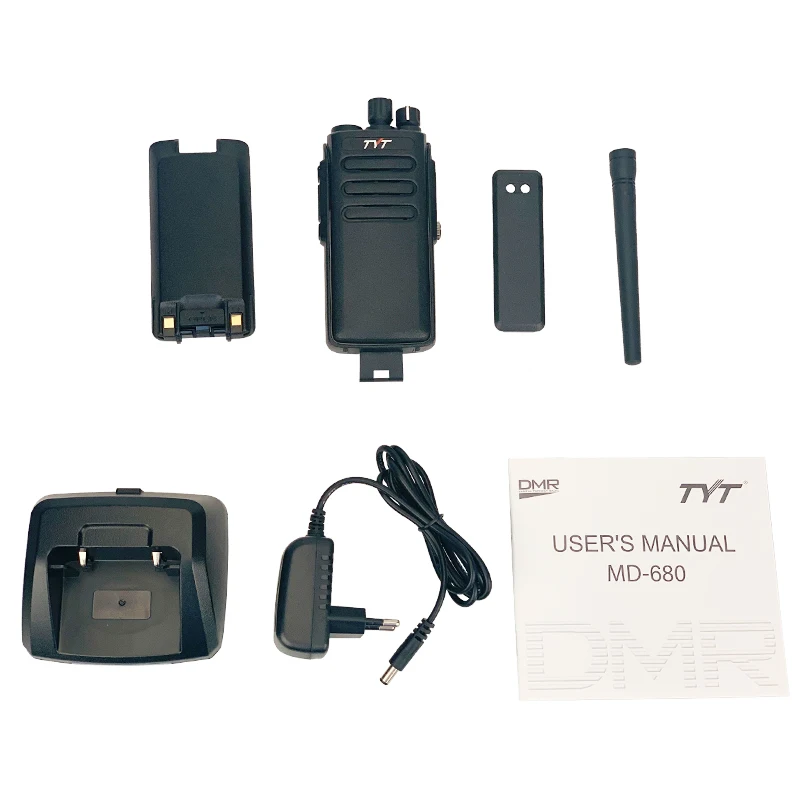

Package Contains:
1 MD-680 UHF 10W IP67 DMR Digital Radio
1 LB-75L 2200mAh Li-ion Battery Pack
1 Antenna
1 Desktop Charger
1 AC Adapter
1 English User Manual

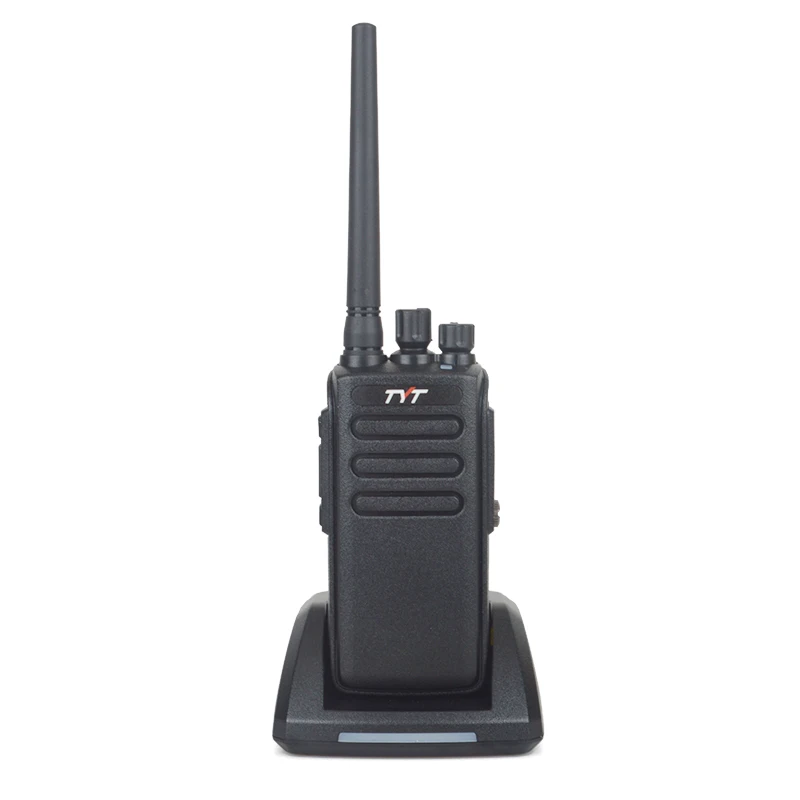

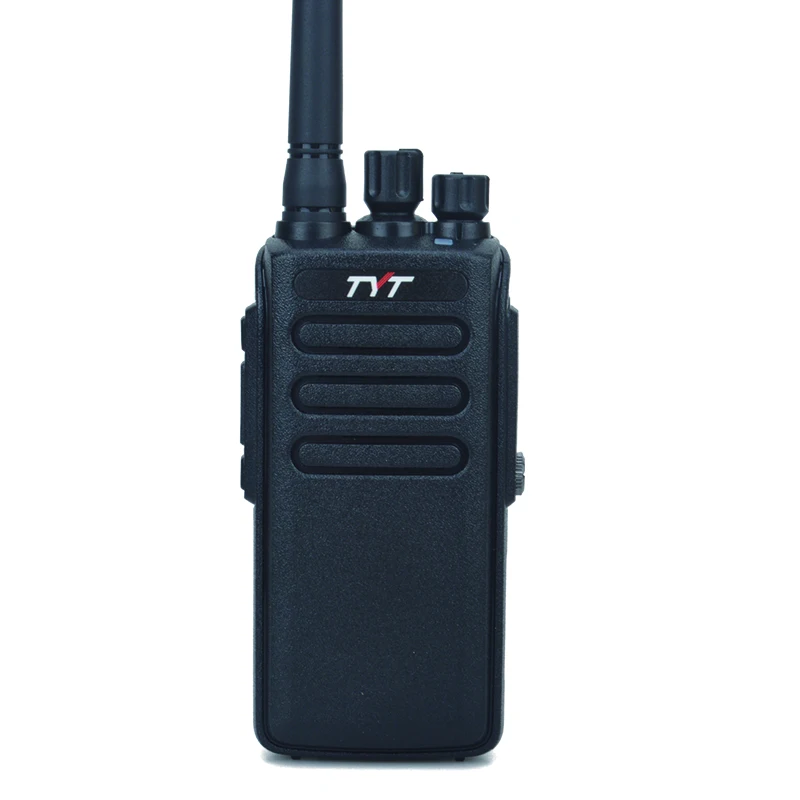

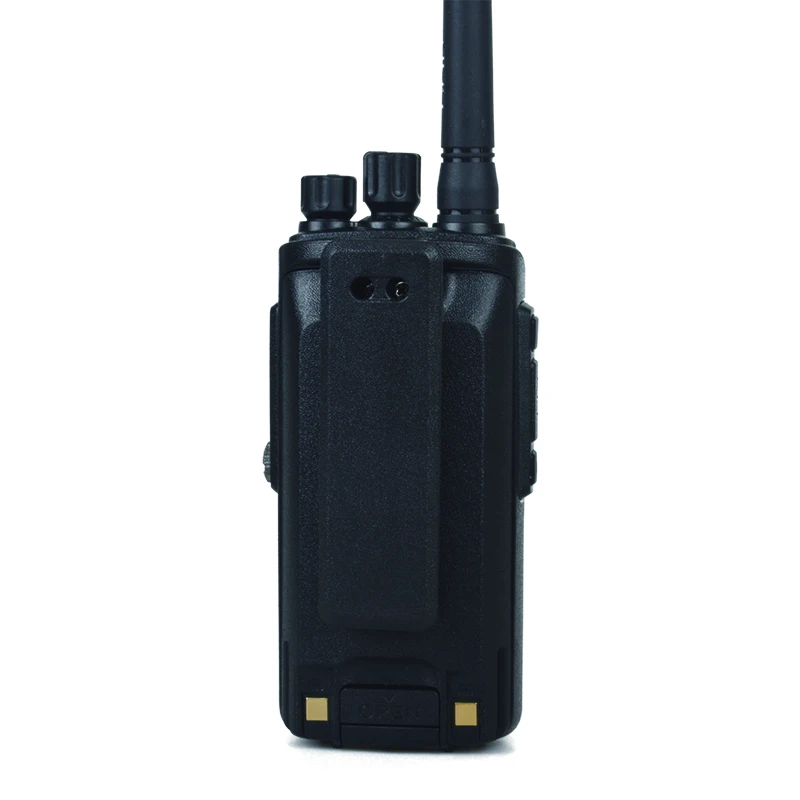

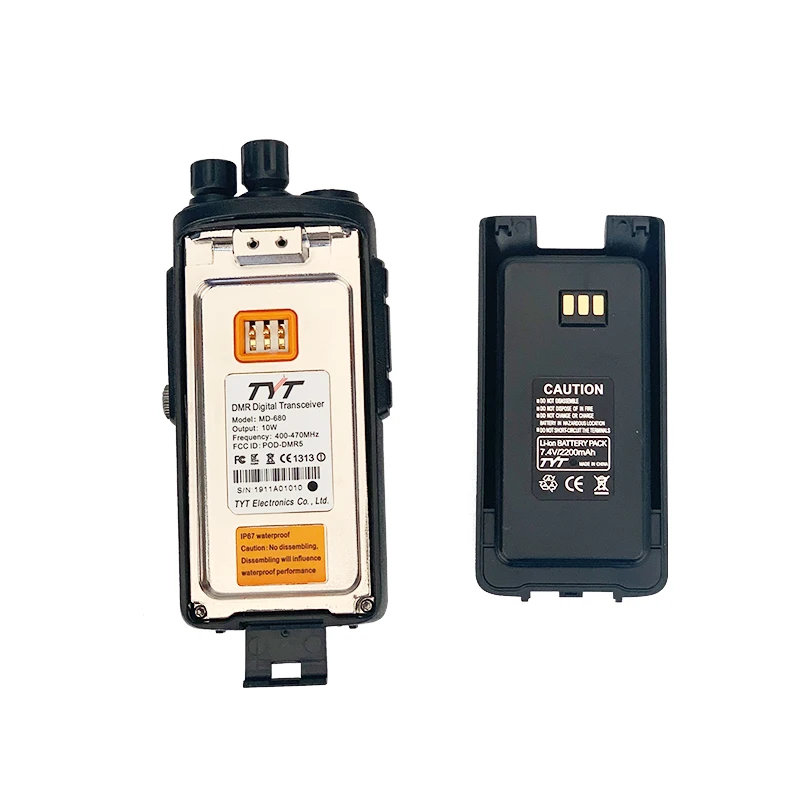

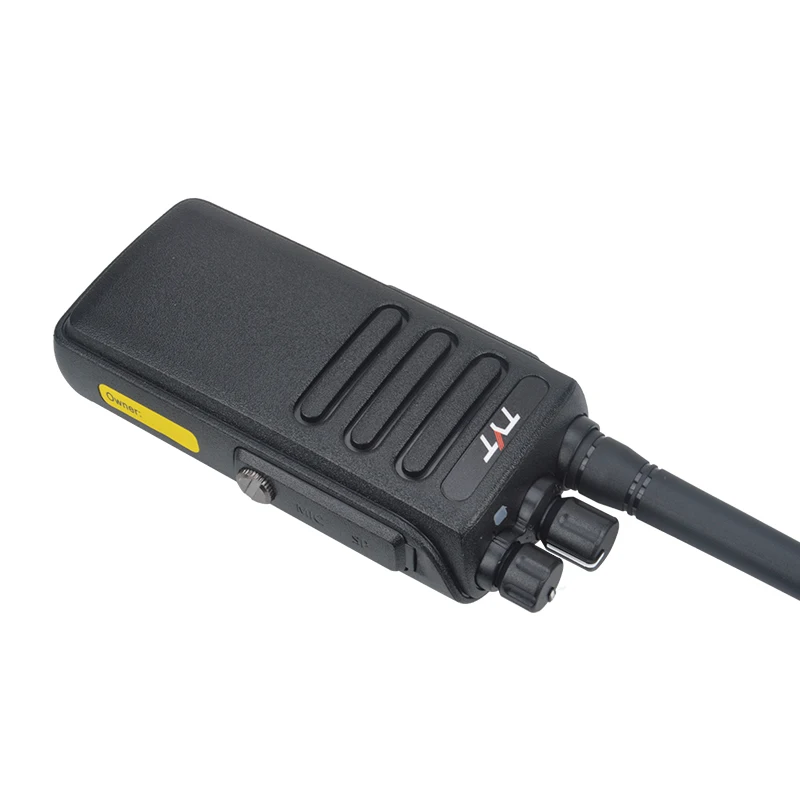

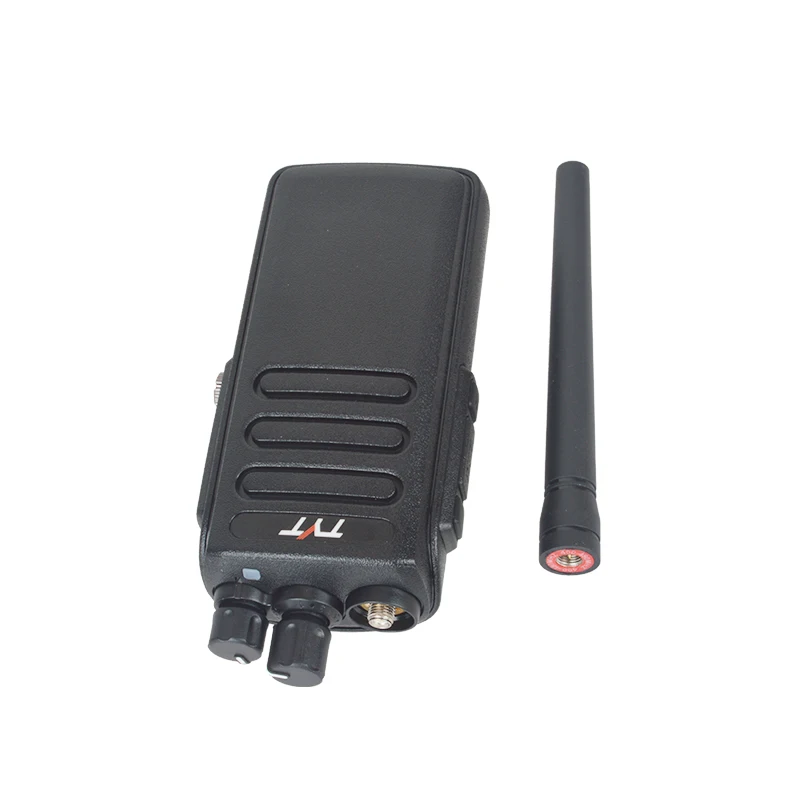

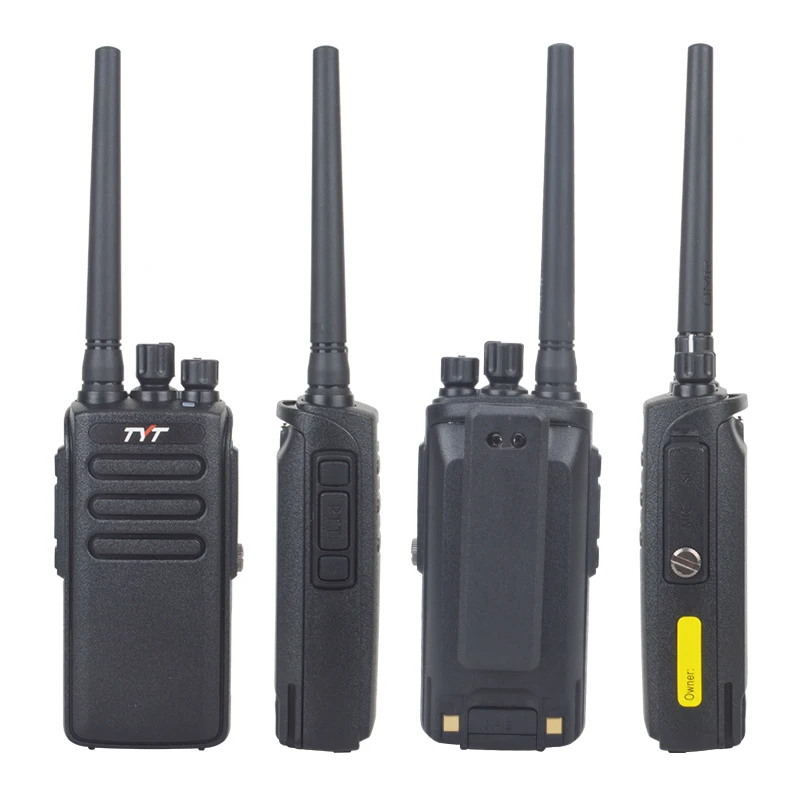

Photos:
Do these radios require a license?
Business UHF/VHF radios require a license in most countries; license-free TLKR/PMR models and PoC/LTE radios do not. Contact us and we will advise for your country.
Can you program my frequencies?
Yes — include your licensed frequencies in the order notes and we pre-program the radios before shipping, free of charge.
What range should I realistically expect?
Expect 1–5 km in urban environments and 10 km+ line-of-sight, depending on power, terrain and antenna.
