- Storage Channel:100
- Frequency Range:400-470MHz
- Dimensions:133(H)*483(W)*330(D)mm
- Model Number:MD-8500U
- Walkie Talkie Type:Repeater
- Is_Display:Yes
- Maximum Range:>10km
- Brand Name:HIROYASU
- Talk Range:20-50Km
- Type:Two Way Radio
- Channel Spacing:12.5KHz/25KHz
- Operating Voltage:220V/110V AC/13.8V DC
- RF Power Output:45W
- Color:Black
- Weight:12Kg

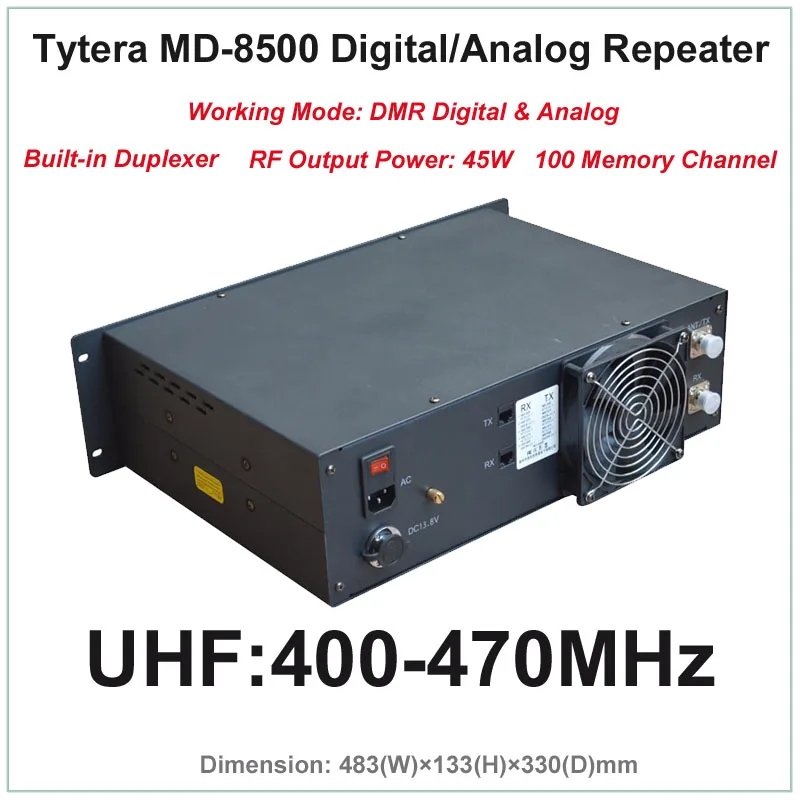

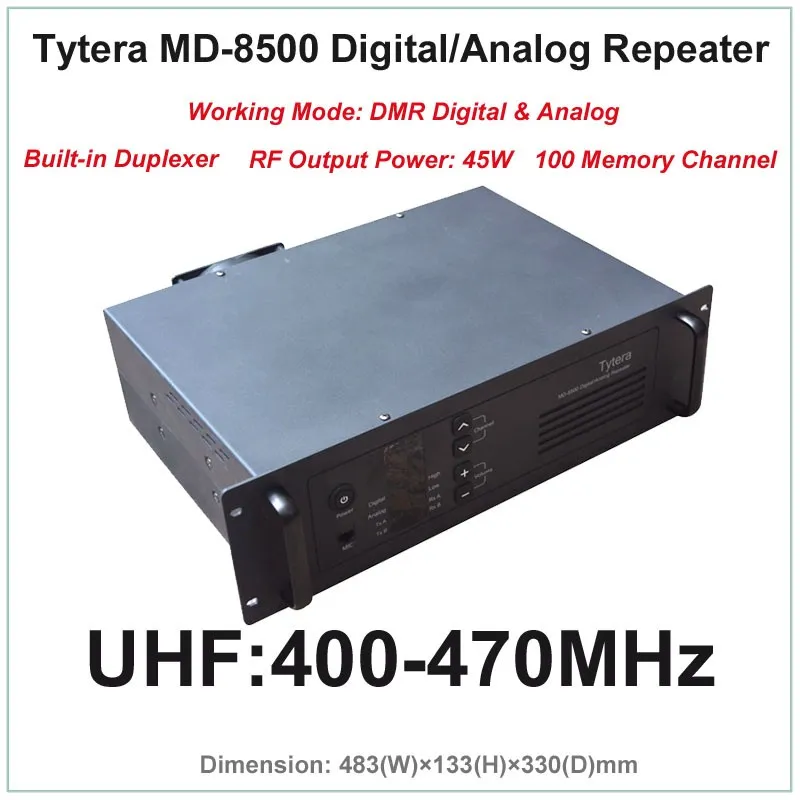

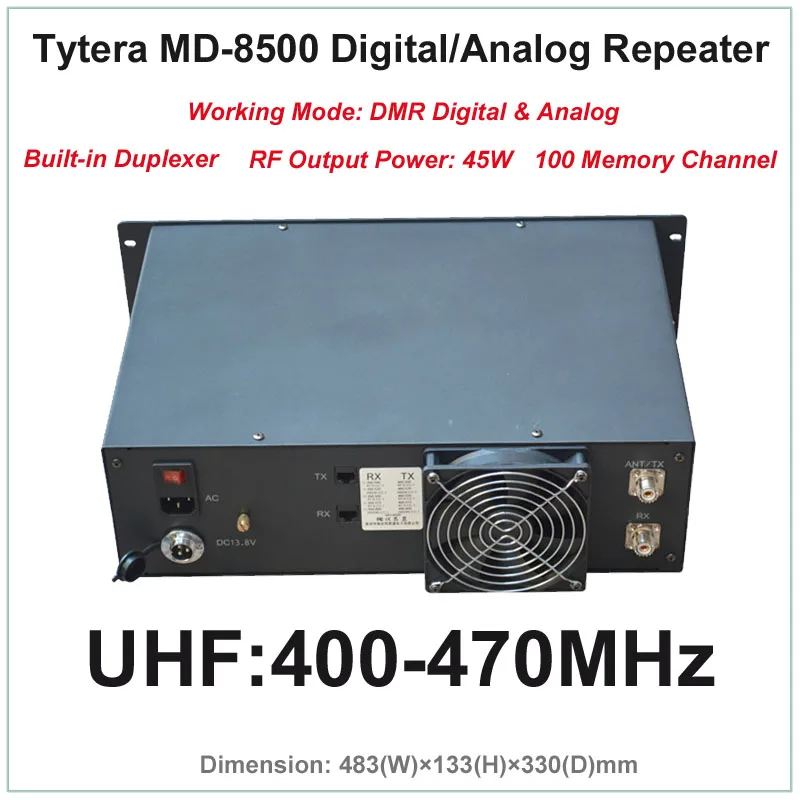

Tytera TYT MD-8500 UHF 400-470MHz DMR Digital & Analog Professional Walkie Talkie Repeater with?Free Programming cable and Software (Built-in?Duplexer,RF Output Power 45W,100 Memory Channel)
IMPORTANCE: The difference between Transmitting Frequency and Receiving Frequency for UHF Band should be 10MHz Maximum due to the duplexer exists(For Example, TX:436.375MHz, then the RX frequency should be 446.375MHz maximum). So please kindly leave us your desired frequency to us by message with your order. thanks!
Features:
100% continuous duty cycle

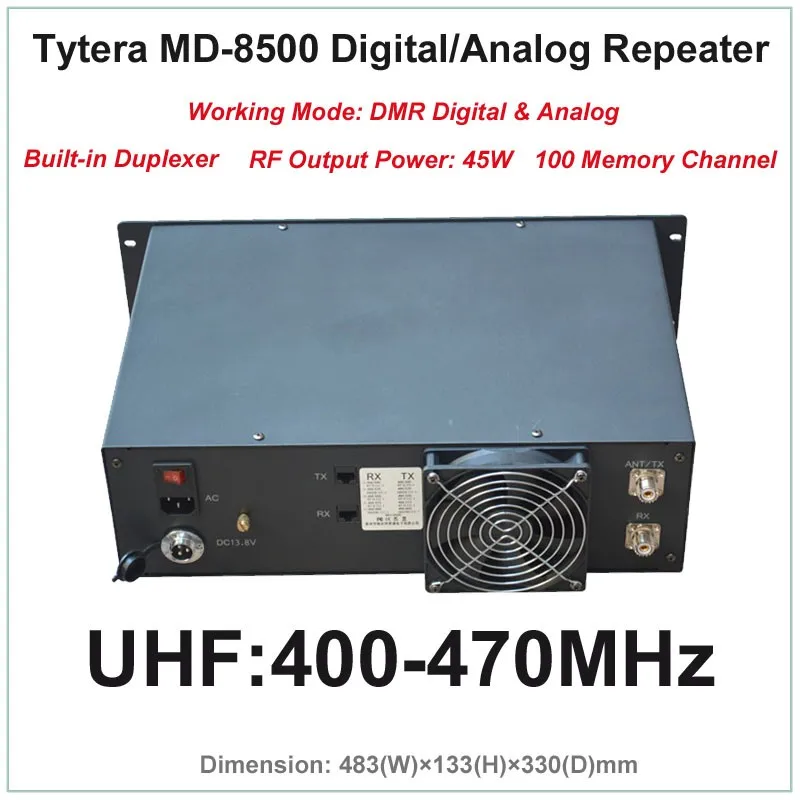

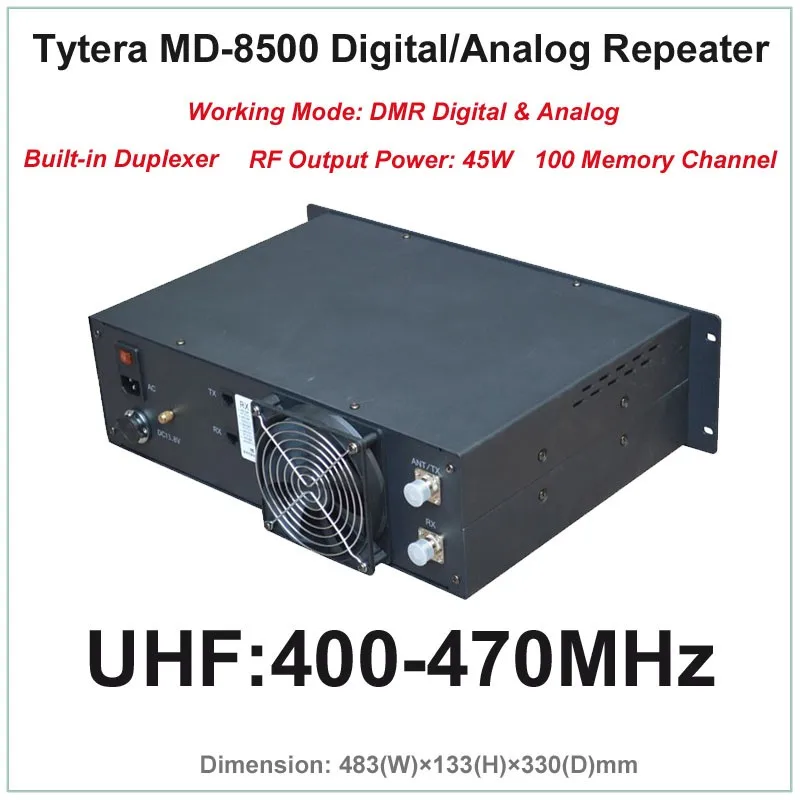

Integrated heat sink and back panel fan provides the good design for 100% continuous duty cycle at 45W output.
Smart detection analog and digital signal
Mix mode in program software realizes the smart detection of analog and digital signals in single channel.
3U rack mount size

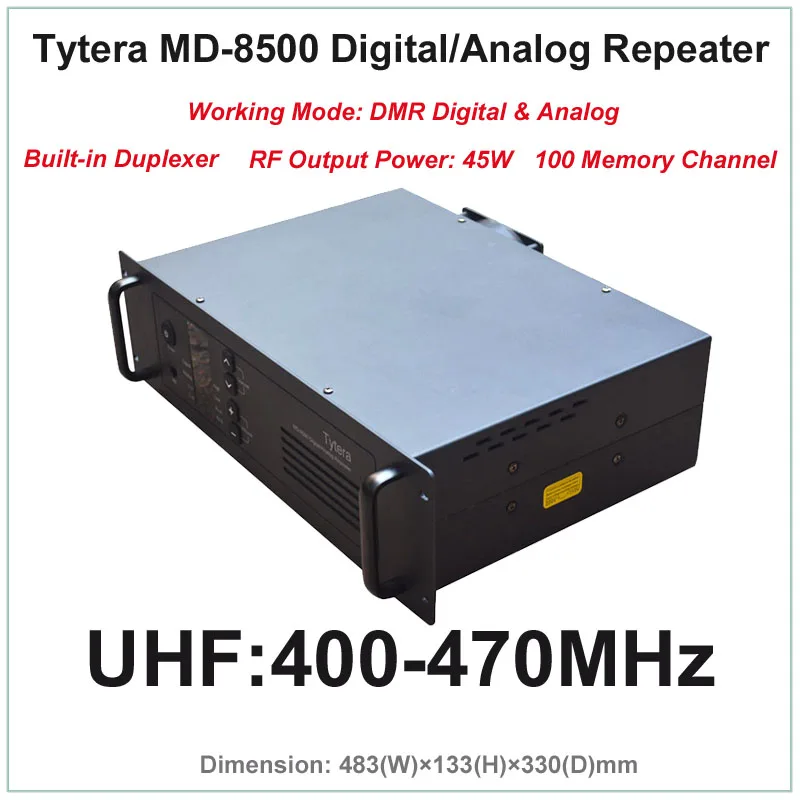

3 U rack mount professional design, with two handles, leave enough internal space for duplexer, possible for desktop or wall mount installation.
100 Memory channels

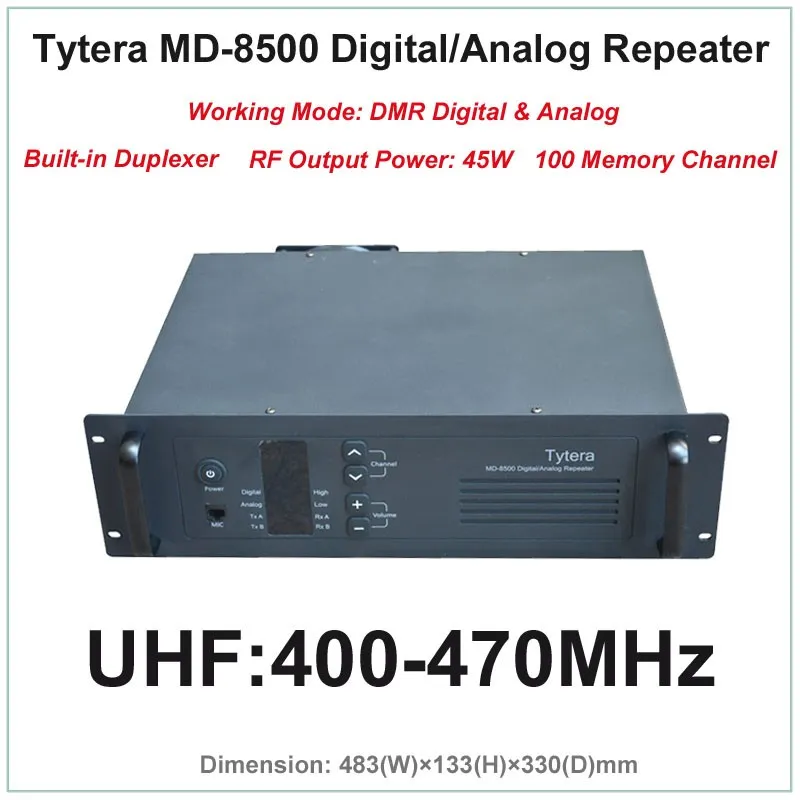

Channels button and LED monitor design in front-panel offer you the clear indication of 100?memory channels and easy switch operation between different channels.
QT/DQT with multi-decode
The MD-8500 decodes 5 QT/DQT groups in one single channel. This function is useful for sharing a channel with multiple groups.
Bright, clear LED indicate

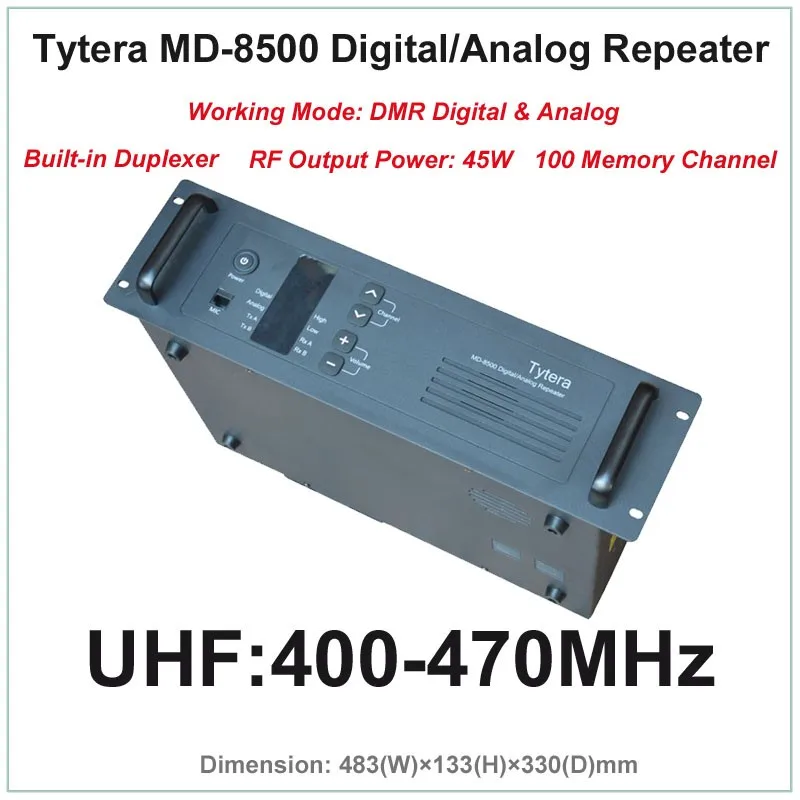

Up to 8 LED lights integrated in front-panel. It is useful to check the status of operation mode including analog/digital, power level, over temperature status.
Automatic voltage and temperature protection
When the operate voltage, temperature, voltage standing wave ratio exceed the pre-set?? value, it switches to low power or power off automatically.
Improved audio quality
Ensures the improved audio quality and larger coverage under noisy environment comparing to traditional analog.
Specifications:
|
General |
|
|
Frequency Range |
400-470MHz |
|
Channel Capacity |
100 |
|
Channel Spacing |
12.5KHz/25KHz |
|
Operating Temperature |
-30c~ +60c |
|
Operating Voltage |
220V/110V AC 15%/13.8V DC 15% |
|
Frequency Stability |
0.5 ppm |
|
Dimension |
133(H)*483(W)*330(D)mm |
|
Weight |
12kg |
|
Transmitter |
|
|
RF Power Output |
45W |
|
Frequency modulation |
16KF3E/11KF3E(Aanalog) |
|
Antenna Impedance |
50 |
|
Modulation Limiting |
2.5KHz 12.5KHz, |
|
Radiated Spurious Emission |
C36dBm < 1GHz |
|
FM Noise |
45dB 25KHz |
|
Modulation Distortion |
3% |
|
Receiver |
|
|
Reference Sensitivity(Analog) |
0.35uV/-116dBm(12 dB SINAD) |
|
Reference Sensitivity(Digital) |
0.22uV/-120dBm |
|
Adjacent channel Selectivity? ETSI: |
60dB 12.5KHz |
|
Intermodulation? ETSI: |
75dB |
|
Spurious Response Rejection |
70 dB |
|
Rated Audio Output |
0.5W |
|
FM Noise |
45dB 25KHz |
|
Rated Audio Distortion |
3% |

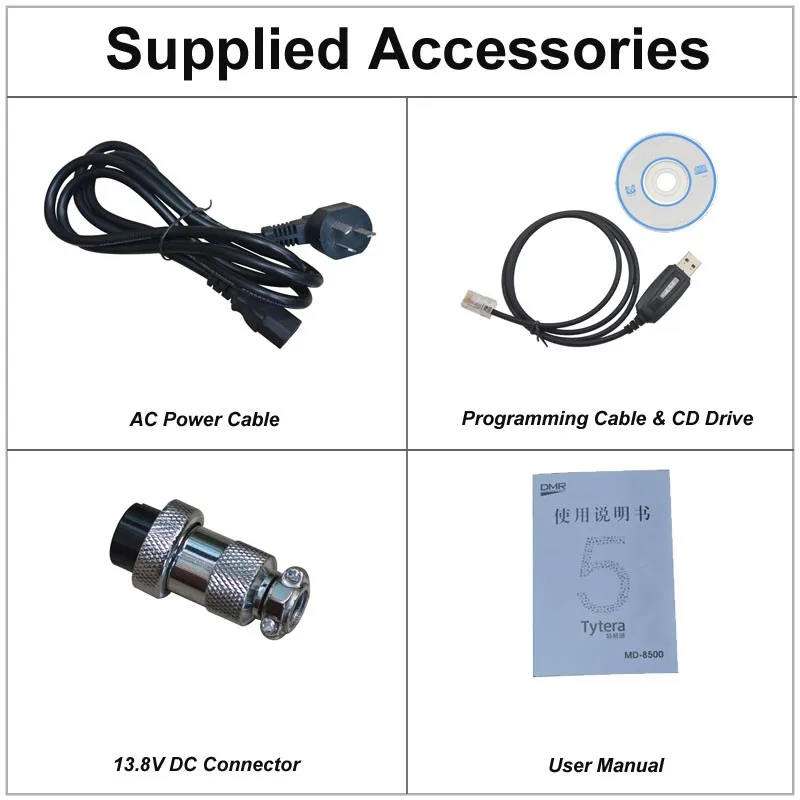

Package Contents:
1Tytera MD-8500 UHF Repeater
1 AC Power Cable
1 13.8V DC Power Connector
1 USB Programming Cable with CD Drive
1 User Manual
