- Output Power(w):10w-25w
- Battery Capacity(mAh):
- Waterproof / Water-Resistant:IP67
- Material:Plastic
- Storage Channel:200
- Frequency Range:?Dual Band VHF 144-148Mhz UHF 420-450Mh
- Dimensions:107*125*45mm
- Model Number:TH-8600
- Walkie Talkie Type:Car
- Is_Display:Yes
- Maximum Range:10km-50km
- Origin:?Mainland China
- Certification:CE,FCC
- waterproof:IP67
- power:25W for VHF and 20W for UHF
- LCD:?Color LCD display
- Dual band:dual display and dual
- DTMF:2Tone/5Tone
- CTCSS/DCS:1750Hz tone
- Remote stun:kill and activate
- Voltage Rating:DC 13.8V
- TYT:?TH-8600 Waterproof Mobile Radio
- Suit for:outdoor and motorcycle
- Type:Two Way Radio
Add a Cable:

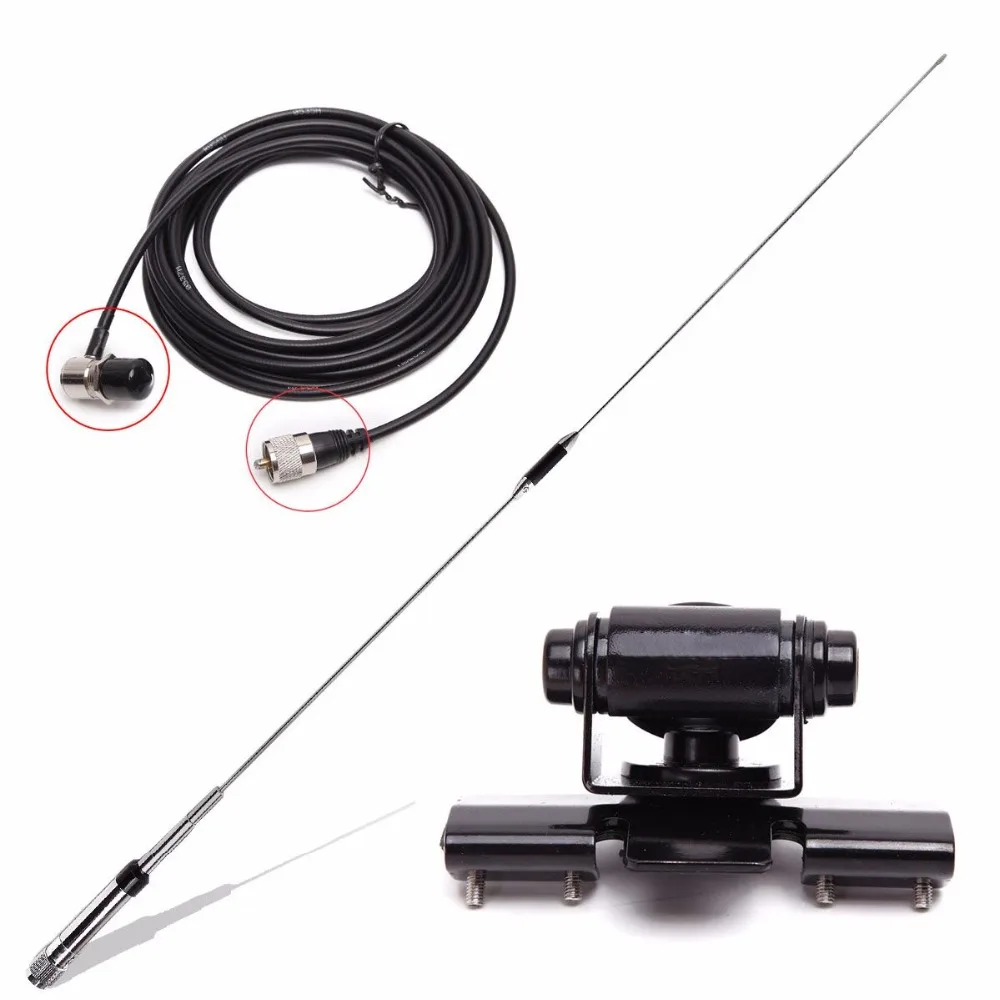

Add Antenna set :
Main Functions:
IP67 waterproof
Dual band, dual display and dual standby
25W for VHF and 20W for UHF
200 channels
P1-P4 programmable functional keys
Color LCD display
DTMF
2Tone/5Tone
CTCSS/DCS
1750Hz tone
Remote stun/kill and activate
Specifications:
|
General |
|
|
Frequency Range(MHz) |
VHF: 136-174Mhz?UHF:400-480Mhz |
|
Channel |
200 |
|
Frequency Stability |
1ppm |
|
Voltage Rating |
DC 13.8V |
|
Operating Temperature |
-30~+60 |
|
Storage Temperature |
-30 ~+85 |
|
Dimention |
107*125*45mm |
|
Transmitter |
|
|
Output power |
25W(VHF) |
|
Transmitting?Current |
4A13.8V |
|
Standby Current |
0.2A 13.8V |
|
FM Modulation |
Wide band:16K0F3E |
|
Modulation distortion |
5% |
|
FM Hun and Noise |
45dB 25KHz |
|
Adjacent Ch. power |
60dB 12.5KHz |
|
Audio response |
+1~-3dB |
|
Receiver |
|
|
Frequency stability (-20?? +60??,+25??) |
+/-1.0ppm |
|
Sensibility |
0.2V |
|
Adjacent Ch. Selectivity |
60dB 12.5KHz |
|
Intermodulation |
60dB/65dB |
|
Spurious Rejection |
70dB |
|
Audio?response |
+1~-3dB |
|
RF Sensitivity |
-122dbm(12db SINAD) |
|
Audio Distortion |
<5% |
|
FM Hum and Noise |
-40dB 12.5KHz |
|
Rated audio |
Rated audio |

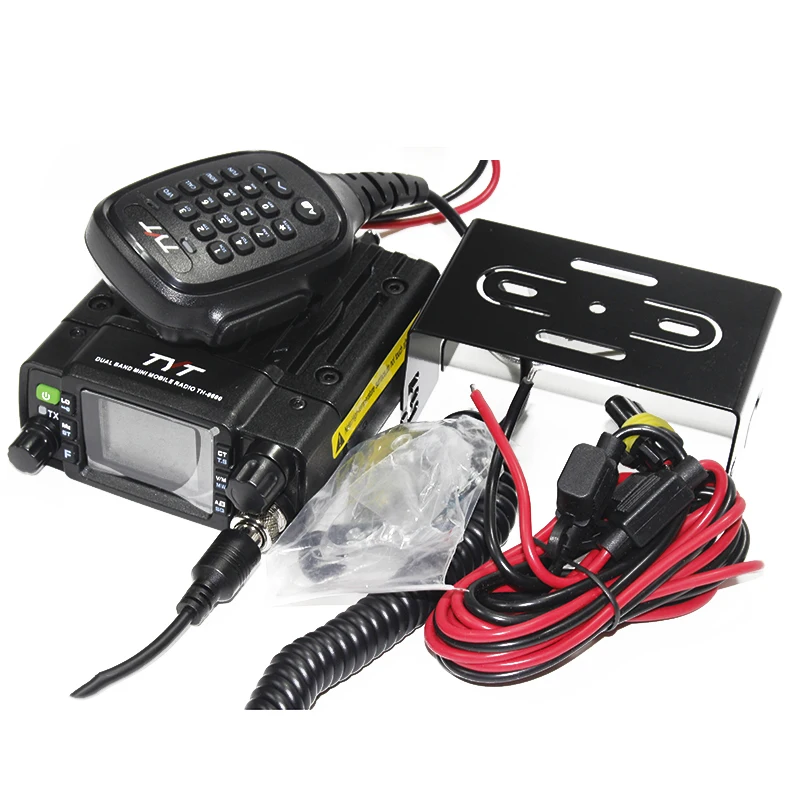

Package include:
1 x Mobile radio
1 x Power cable
1 x Handheld mic
1 x One pack of screw and accessories
1 x User’s manual
