- Output Power(w):25w-50w
- Battery Capacity(mAh):0
- Waterproof / Water-Resistant:No
- Material:Metal
- Storage Channel:200
- Frequency Range:?66-88MHz
- Dimensions:145(W)*47(H)*190(D)mm
- Model Number:TH-9000D
- Walkie Talkie Type:Car
- Is_Display:Yes
- Maximum Range:10km-50km
- Origin:?Mainland China
- Certification:CE,FCC
- Color:?Black
- Net Weight:1.2KG approx.
Features:
-66-88MHz Transmit and Receive both
-45/60Watt High/Medium/Low Output Power selectable
-200 programming memorized channels, identified by editing name
-Scrambler Function
-Program different CTCSS,DCS,2Tone,5 Tone in per channel, rejecting extra calling from other radios
-Using 5 Tone to send message,Emergency alarm, Call all, ANI, Remotely kill, Remotely waken etc
-Automatically calling Identification function by DTMFANI or 5 Tone??ANI
-Compander function for decrease the background noise and enhance audio clarity,it can set compander ON/OFF per channel
-Different band width per channel, 25K for wide band,20K for middle band, or 12.5K for narrow band
-Theft alarm provides extra safety
-Five programmable multi-functional keys, can set various shortcut operation according to different requirement
-1024 groups of DCS code improves the abiliting of rejecting extra calling
-Display on a Large LCD with adjustable brightness, convenient for nighttime use.
-DTMF,DTMF ANI, 2 Tone or 5 ToneSignaling
-Pilot Frequency
-setting step: 5 / 6.25 / 8.33 /10 / 12.5 / 15/20/25/30 / 50KHz
Specifications:
|
General |
||
|
Frequency Range |
66-88MHz |
|
|
Number of Memory Channels |
200 |
|
|
Channel Spacing |
25K (Wide Band),20K (Middle Band),12.5K (Narrow Band) |
|
|
Frequency Step |
5 / 6.25 / 8.33 / 10 / 12.5 / 15/20/25/30 |
|
|
Operating Voltage |
13.8V DC15% |
|
|
Squelch |
Carrier/CTCSS/DCS/5Tone/2Tone/DTMF |
|
|
Frequency Stability |
2.5ppm |
|
|
Operating Temperature |
-20~+60C |
|
|
Dimensions |
145(W)*47(H)*190(D)mm |
|
|
Weight |
About 1.2kg |
|
|
Receiver (ETSI EN300 086 Standard Testing) |
||
|
Wide Band |
Narrow Band |
|
|
Sensitivity(12dB SINAD) |
0.25V |
0.35V |
|
Adjacent Channel Selectivity |
70dB |
60dB |
|
Intermodulation |
65dB |
60dB |
|
Spurious Rejection |
70 |
70dB |
|
Audio Response |
+1~-3dB(0.3-3KHz) |
+1~-3dB(0.3-2.55KHz) |
|
Hum & Noise |
45dB |
40dB |
|
Audio distortion |
5% |
|
|
Audio Power Output |
>2W @10% |
|
|
Transmitter (ETSI EN 300 086 Standard Testing) |
||
|
Wide Band |
Narrow Band |
|
|
Power Output |
45W(H)/25W(M)/10W(L) |
|
|
Modulation |
16KF3E |
11KF3E |
|
Adjacent Channel Power |
70dB |
60dB |
|
Hum & Noise |
40dB |
36dB |
|
Spurious Emission |
60dB |
60dB |
|
Audio Response |
+1~-3dB(0.3-3KHz) |
+1~-3Db(0.3~2.55KHz) |
|
Audio Distortion |
5% |
|
Package Contains:
1 TYT TH-9000D 66-88MHz Mobile Radio
1 DTMF Hand Microphone
1 Mobile Mounting Bracket
1 DC Power Cable with Fuse
8 Screws
2 Fuses
1English Users Manual

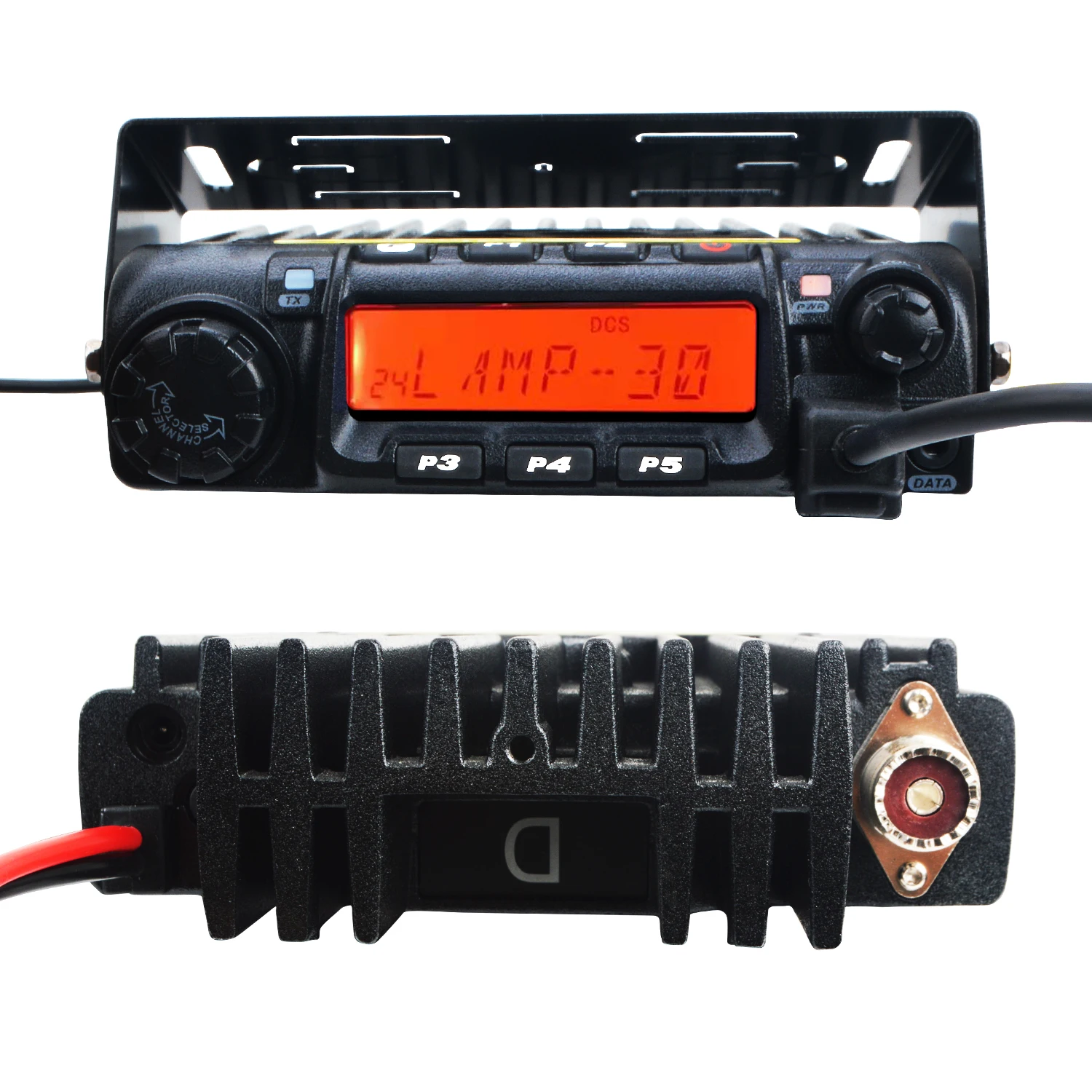

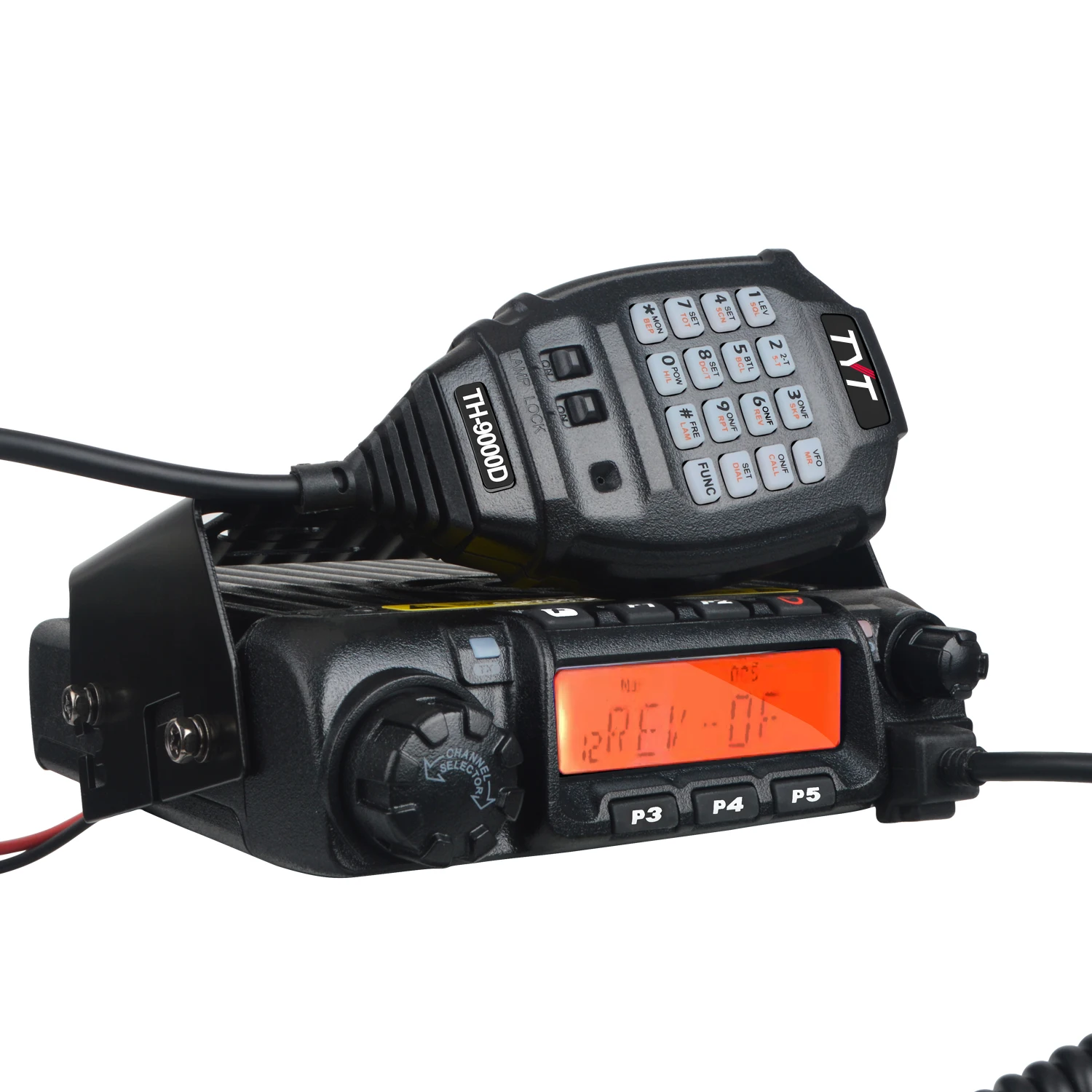

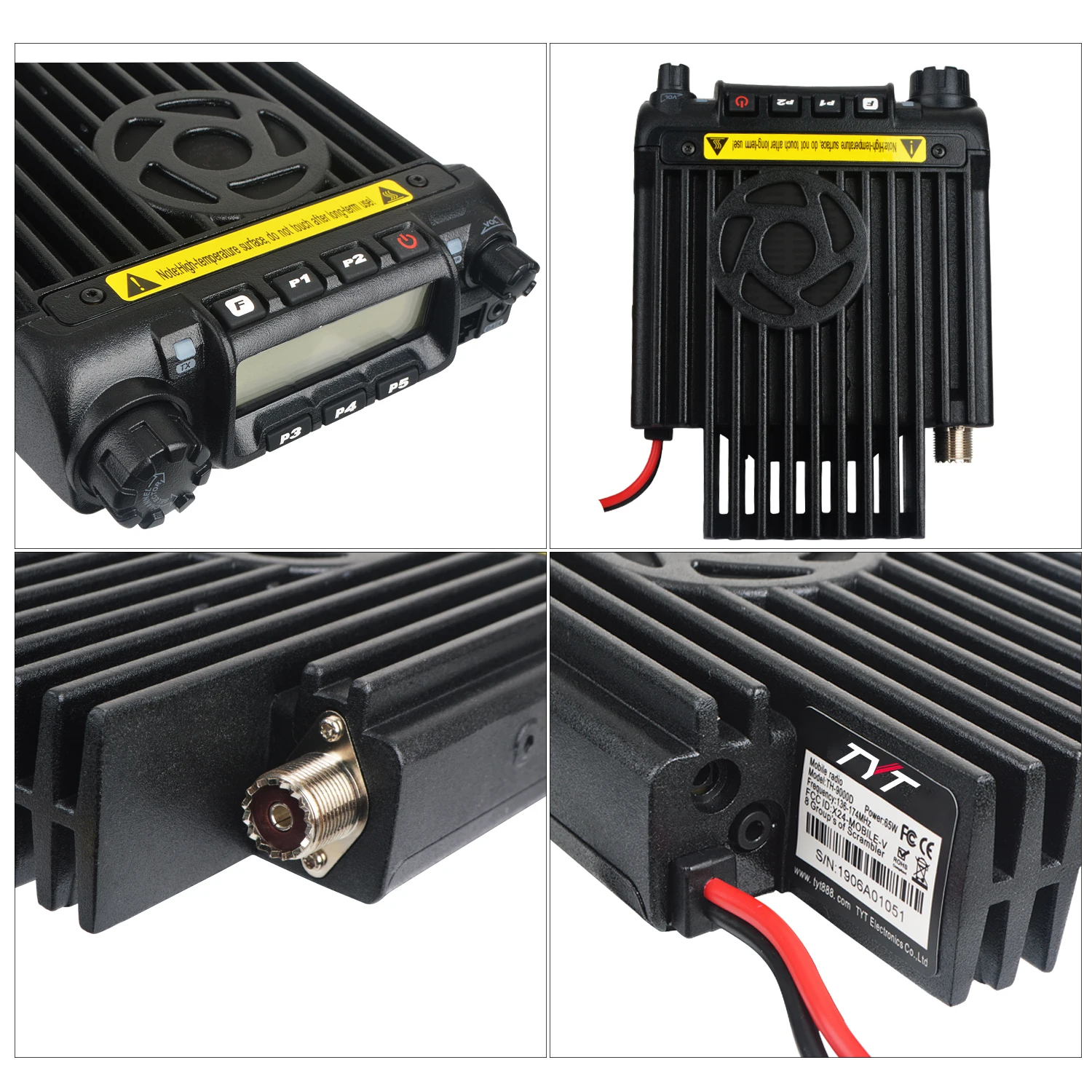

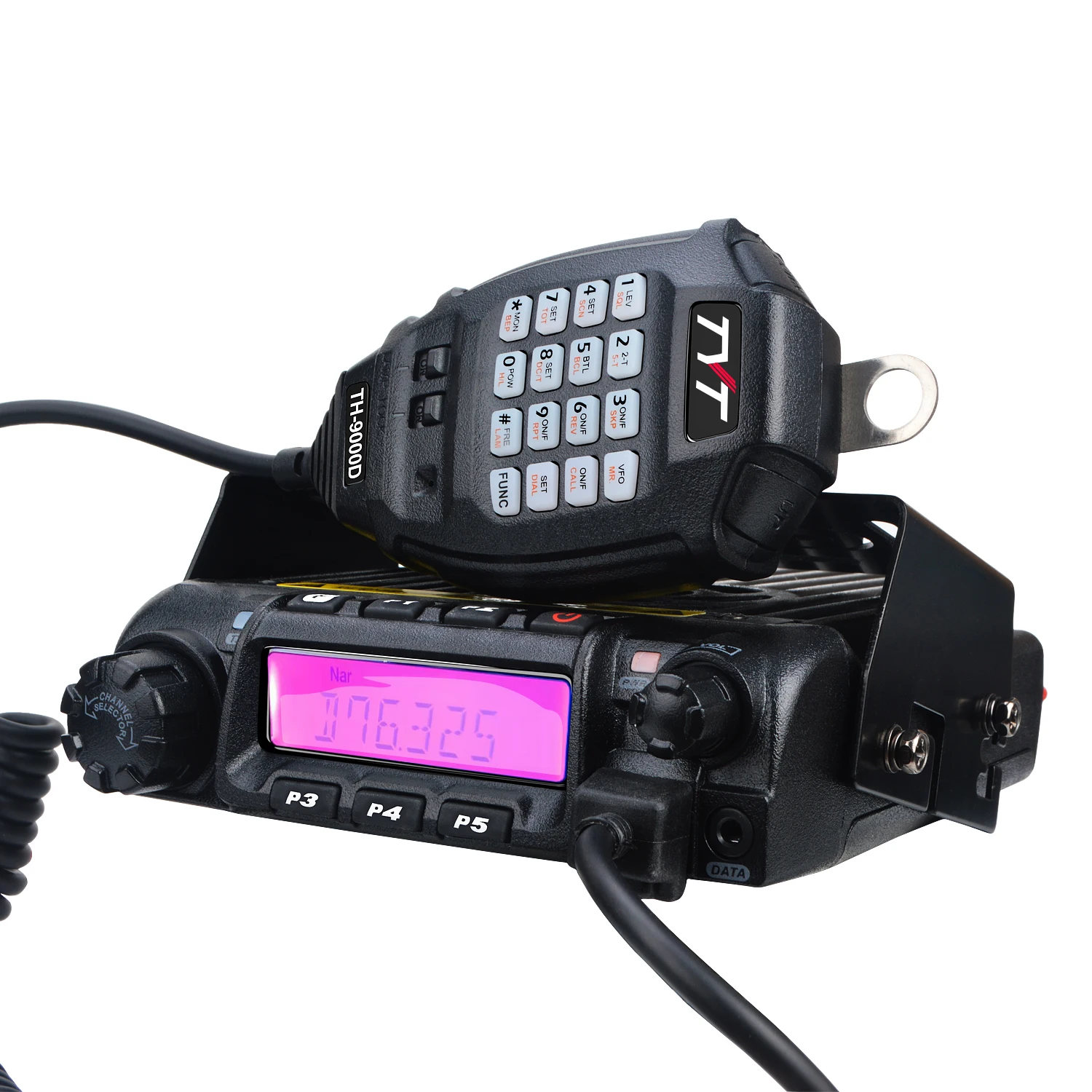

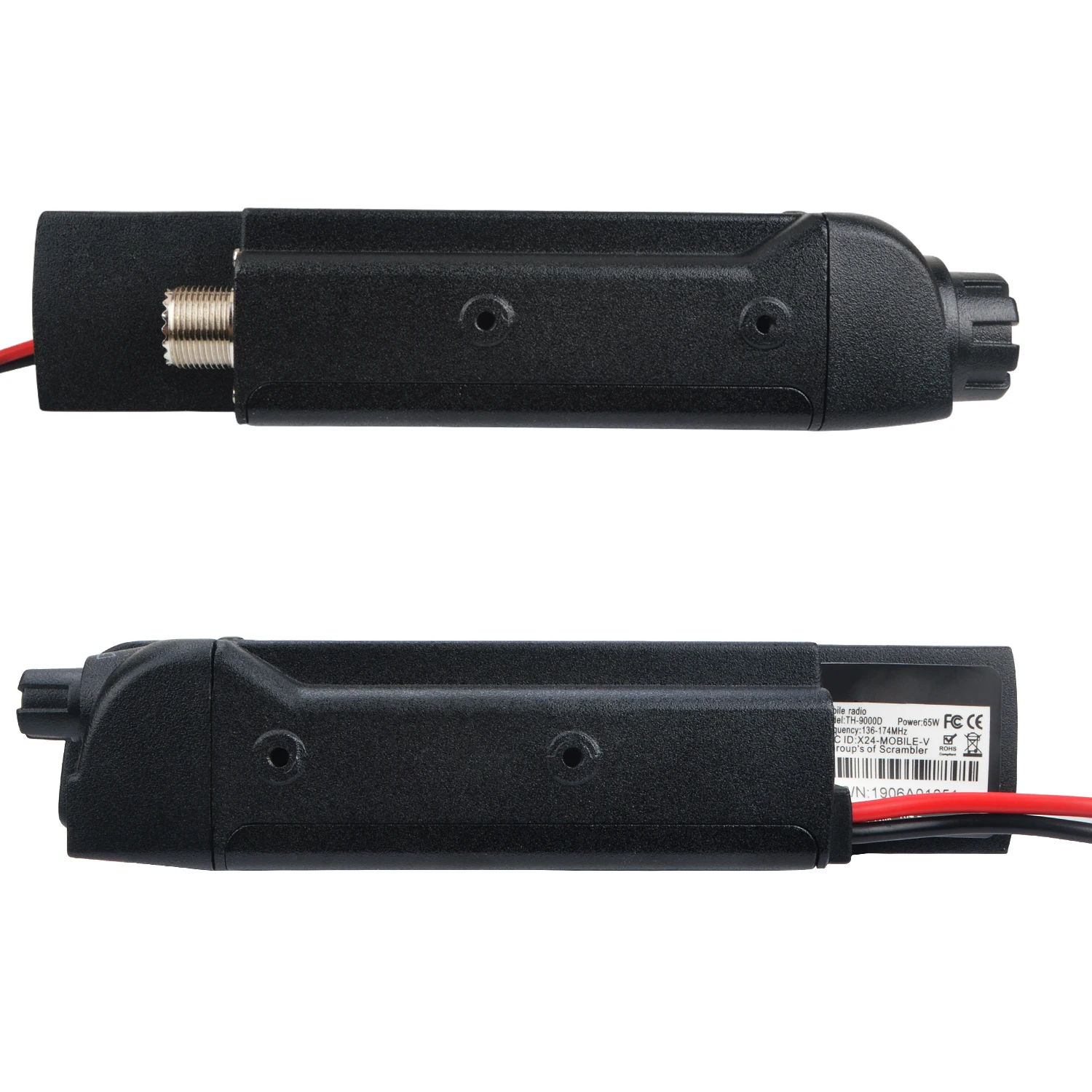

Photos:
Do these radios require a license?
Business UHF/VHF radios require a license in most countries; license-free TLKR/PMR models and PoC/LTE radios do not. Contact us and we will advise for your country.
Can you program my frequencies?
Yes — include your licensed frequencies in the order notes and we pre-program the radios before shipping, free of charge.
What range should I realistically expect?
Expect 1–5 km in urban environments and 10 km+ line-of-sight, depending on power, terrain and antenna.
