Name: TYT TH-UV8200 Dual Band Walkie Talkie, 10W, IP67, GPS
Brand: TYT
SKU: TH-UV8200
Price: 79.00 USD
Availability: InStock

TYT TH-UV8200 Dual Band Walkie Talkie, 10W, IP67, GPS

Bulk pricing available for orders of 10+ units. Get a quote → | Full price list

TYT TH-UV8200 IP67 waterproof dual band GPS 10W walkie talkie HIGH POWER FM portable analog ra is a TYT analog two-way radio (model TH-UV8200). It pairs well with existing radio setups and covers the essentials without overcomplicating things. Wholesale and O

106 in stock

30-Day ReturnsFree Return Shipping24/7 Expert Support

SKU: TH-UV8200 Categories: Analog Radio, TYT Tag: TYT

Output Power(w):5w-10w
Battery Capacity(mAh):2200mAh

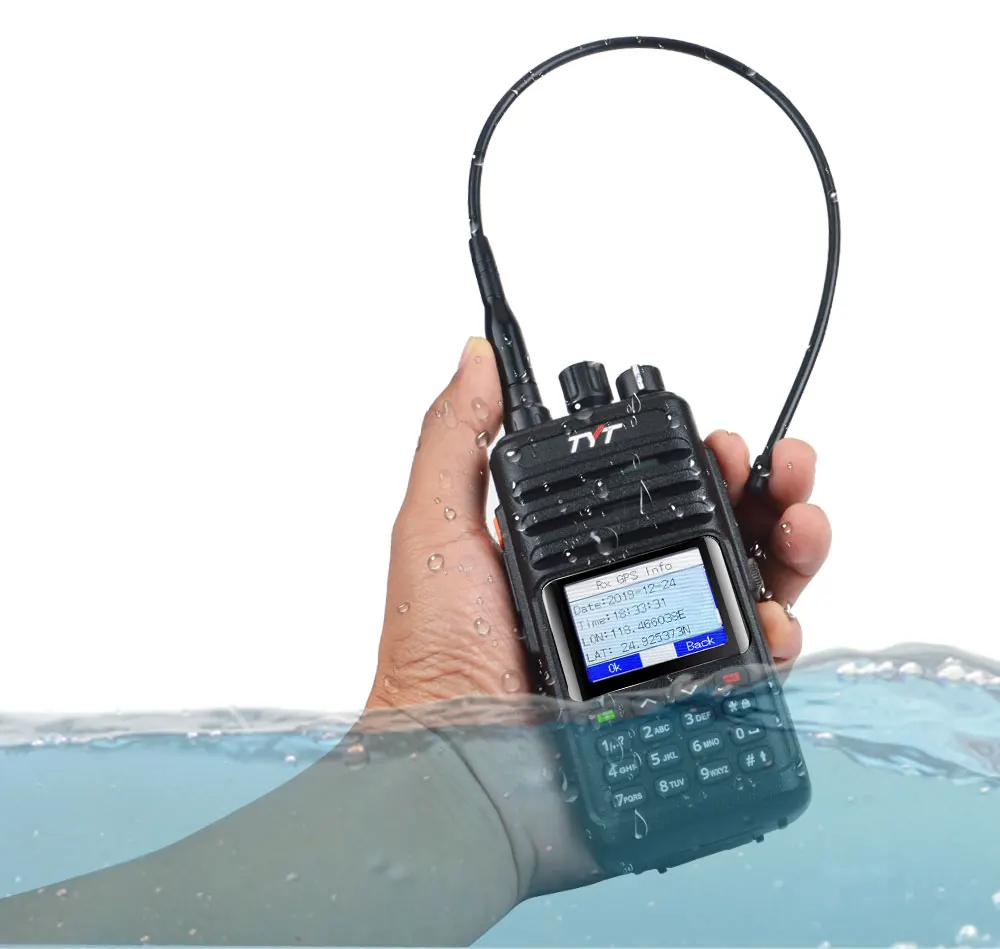

Waterproof / Water-Resistant:IP67
Material:Plastic
Storage Channel:256
Frequency Range:?Dual band VHF 136-174MHz & UHF 400-520MHz

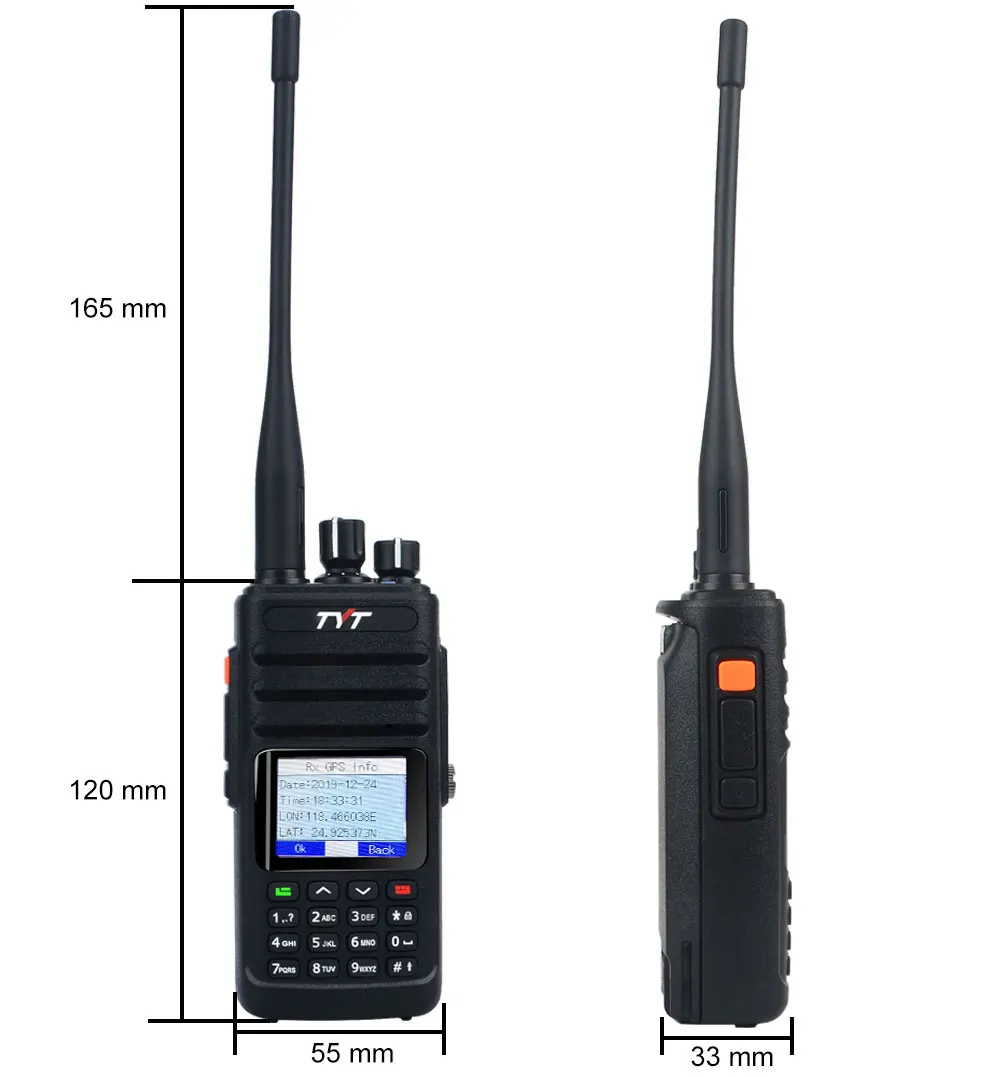

Dimensions:120*55*33mm
Model Number:TH-UV8200
Walkie Talkie Type:Portable
Is_Display:Yes
Maximum Range:3km-5km
Brand Name:TYT
Origin:Mainland China
Color:Black

Features:

IP67 waterproof analog two way radio
Dual Band,dual display,Duan wait and dual standby
256 groups of memory channels
Wide/Narrow bandwidth selection (25kHz/12.5kHz)
Handsfree VOX function
English/Chinese Voice prompt
CTCSS/DCS encoding and decoding
Non-standard CTCSS/DCS input
Auto Scan
ANI function
FM radio receiver and 25 memory radio stations
PC program
1750 Tone
DTMF decoding and encoding
Remote stun,kill and activated
Man down
1.77 inch color Display
Emergency alarm
Roger beep
Tail tone elimination

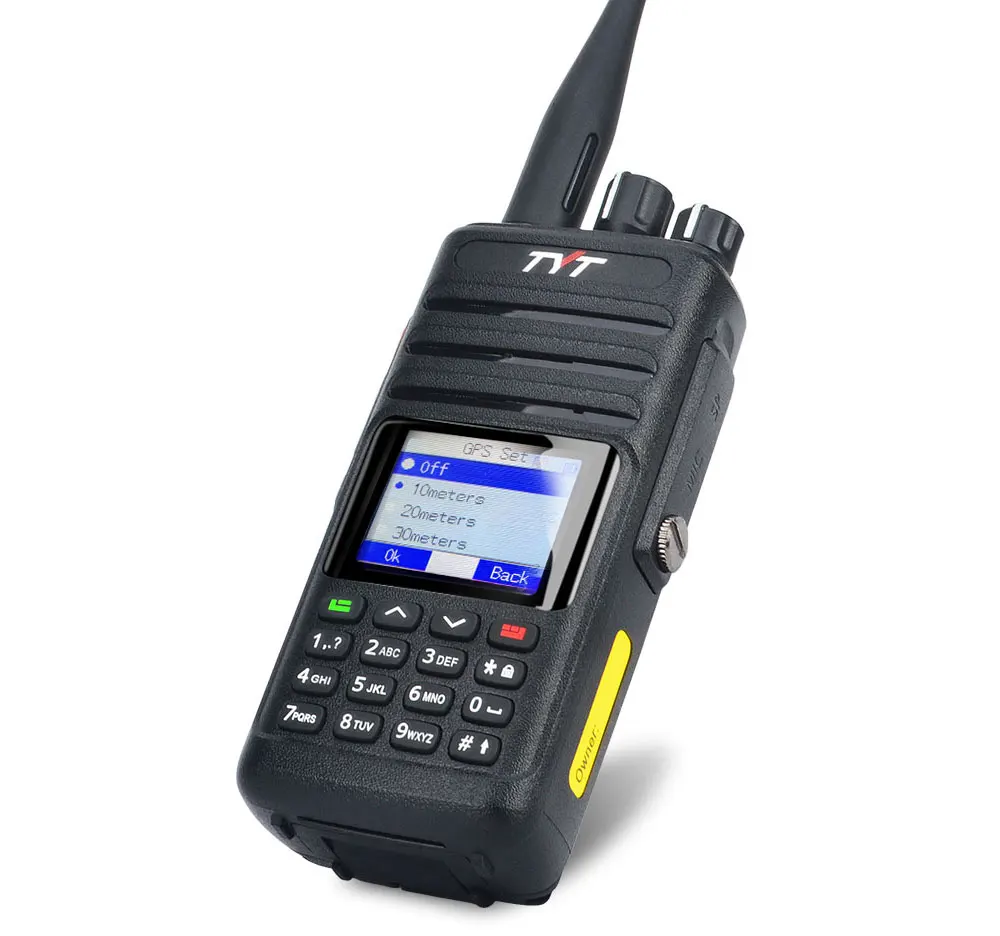

GPS position
Step: 0.50/2.50/5.00/6.25/10.0/12.5/25.0/37.5/50.0/100KHz

Specifications

General
Frequency Range	136-174MHz & 400-520MHz
Frequency Stability	2.5ppm
Channel Capacity	256 channels
Operating Voltage	DC 7.2V
Antenna	SMA-Male Dual band High gain antenna
Antenna Impedance	50 ohm
Mode of operation	Same or different frequency simplex
Dimension (HWD)	1205533mm
Transmitter
RF POWER	High 10W Low 5W
Modulation Type (Wide/Narrow band)	16K ??F3E/11K ??F3E
Max. Fr. Deviation (Wide/Narrow band)	5KHz/ 2.5KHz
Adjacent Ch. Power(Wide/Narrow band)	-65dB/ -60dB
Spurious Power	7W
Pre-emphasis character	6dB/Each frequency doubling the increment
Modulated noise	<-40dB
Current	2.8A(10W) 1.8A(5W)
DCS/CTCSS Frequency deviation	0.6KHz 0.15KHz,0.4KHz 0.1KHz
Intermediation sensitivity	8~12mV
Modulation distortion	<5%
Receiver
Reference Sensitivity	<-122dBm (12Db SINAD)
Audio power	1W
Audio Distortion	<5%
Blocking	85
Inter-modulation (wide/Narrow band)	60dB 55dB
Adjacent Ch. Selection	65dB60dB

Note: Specifications will be revised without notice due to technical improvement. Thank you.

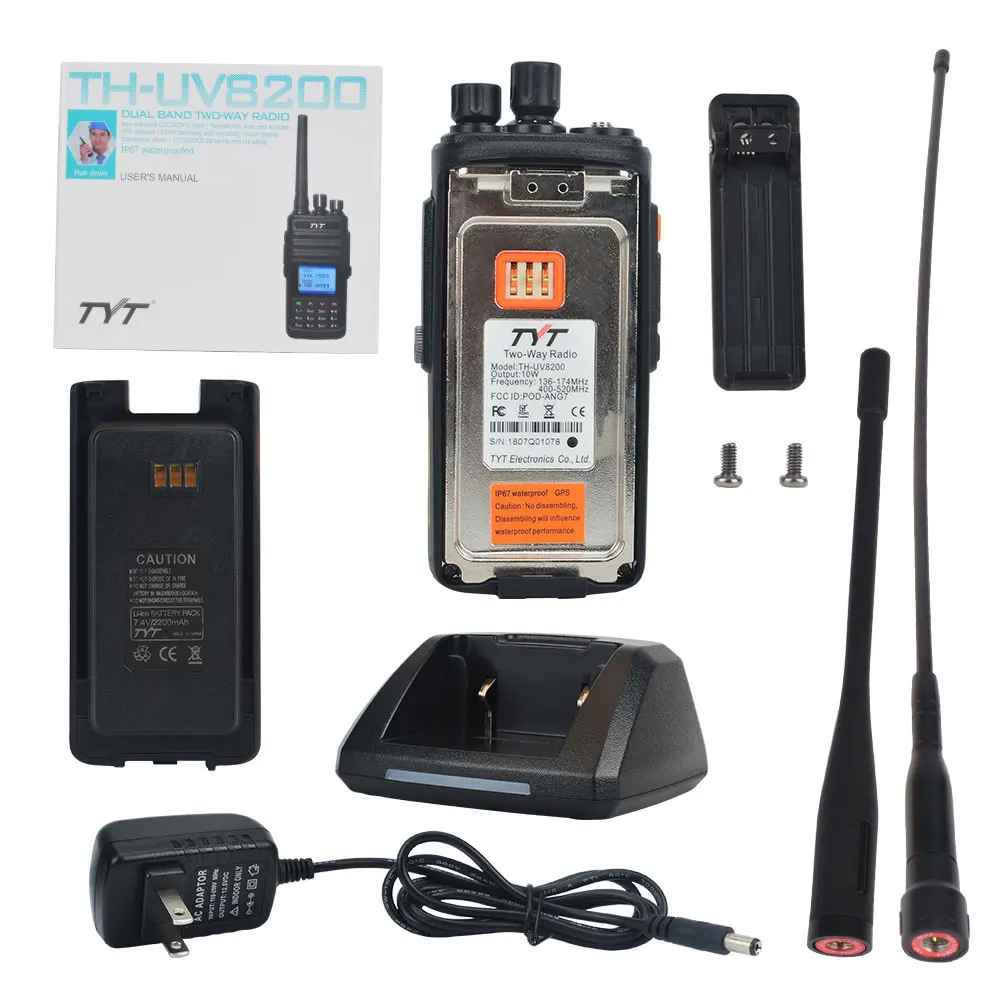

Package Contains:

1 x TH-UV8200 Dual Band GPS radio

1 x DC7.4V 2200mAh Li-ion battery Pack

1 x 16.5cm SMA-MALE standard antenna

1 x 37.5cm SMA-Male high gain antenna

1 x Belt clip

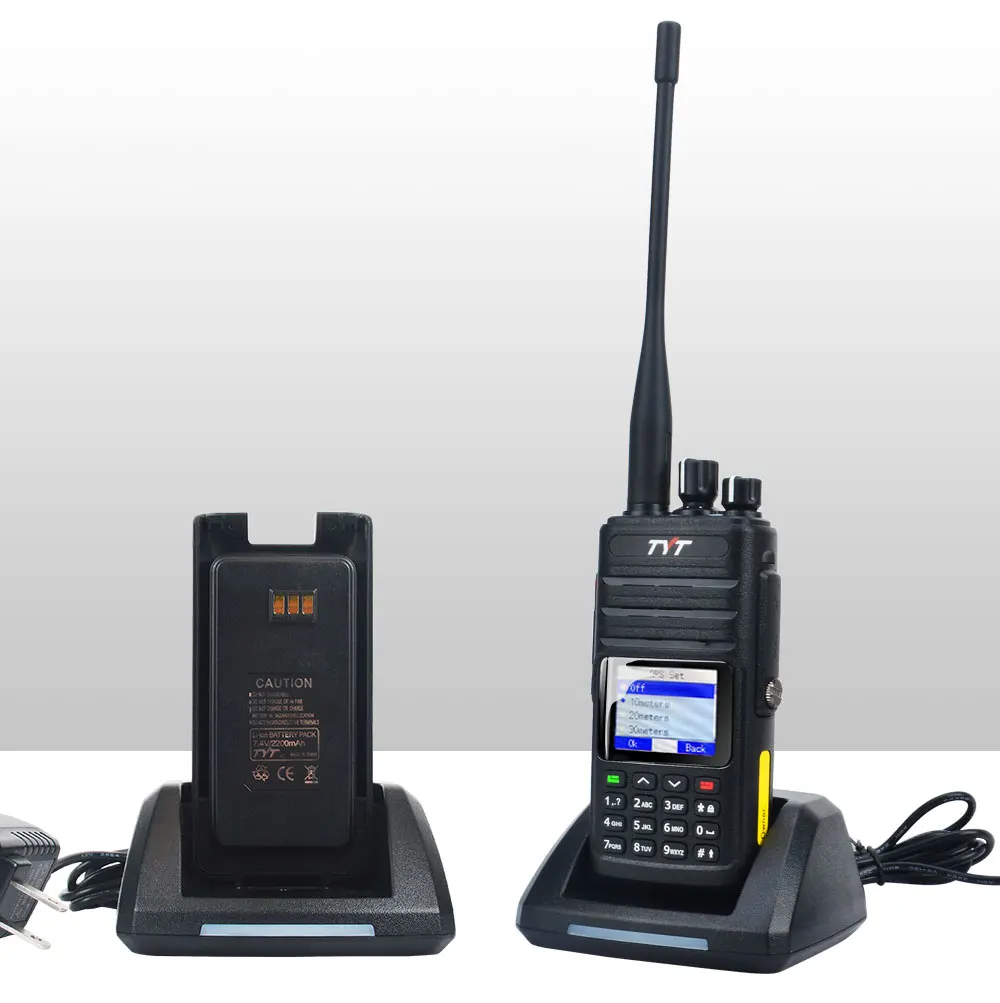

1 x Desktop charger

1 x 110-250V AC Adapter

1 x English Users?? manual

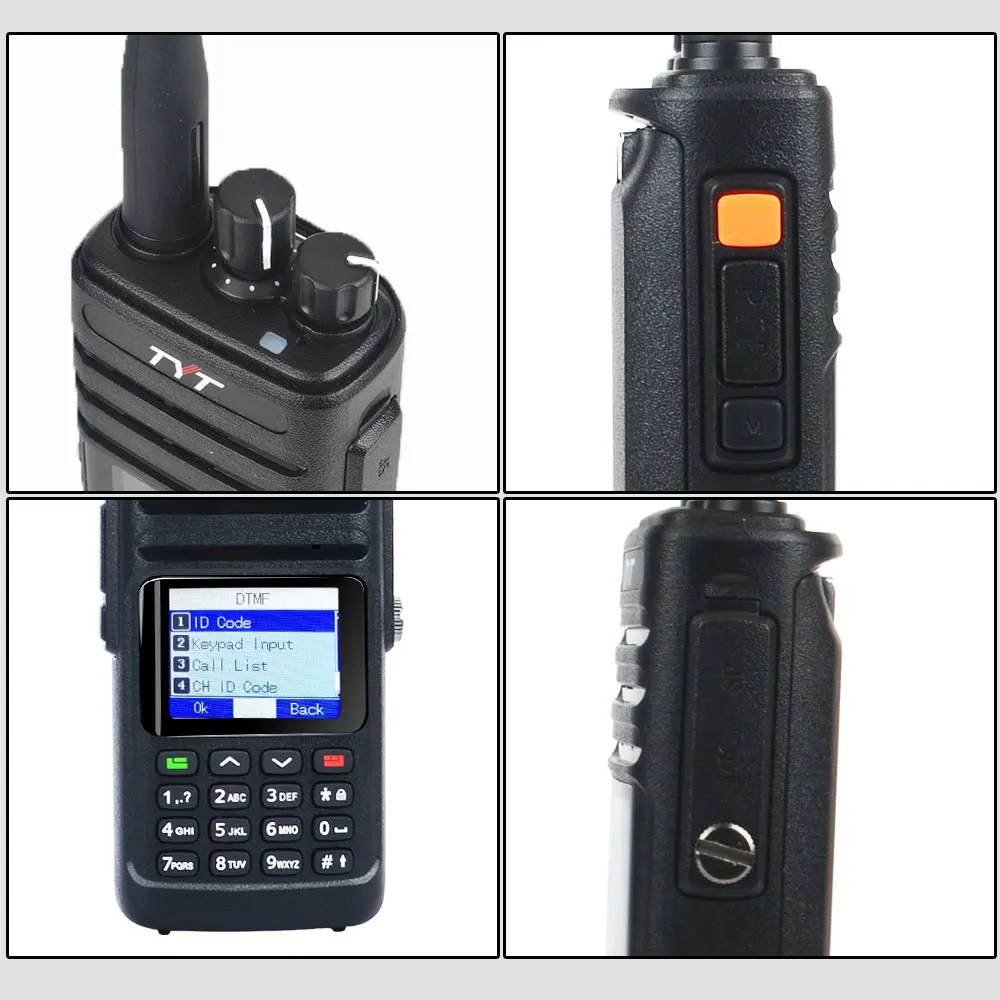

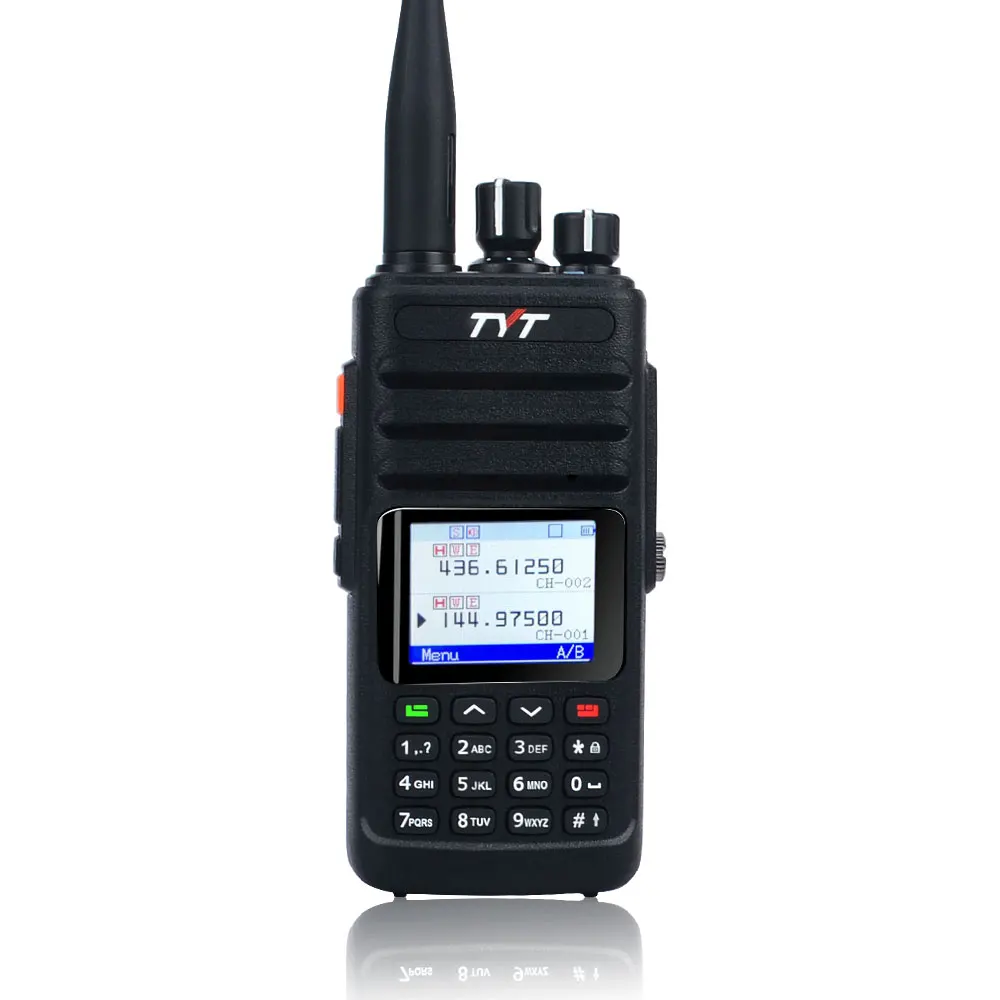

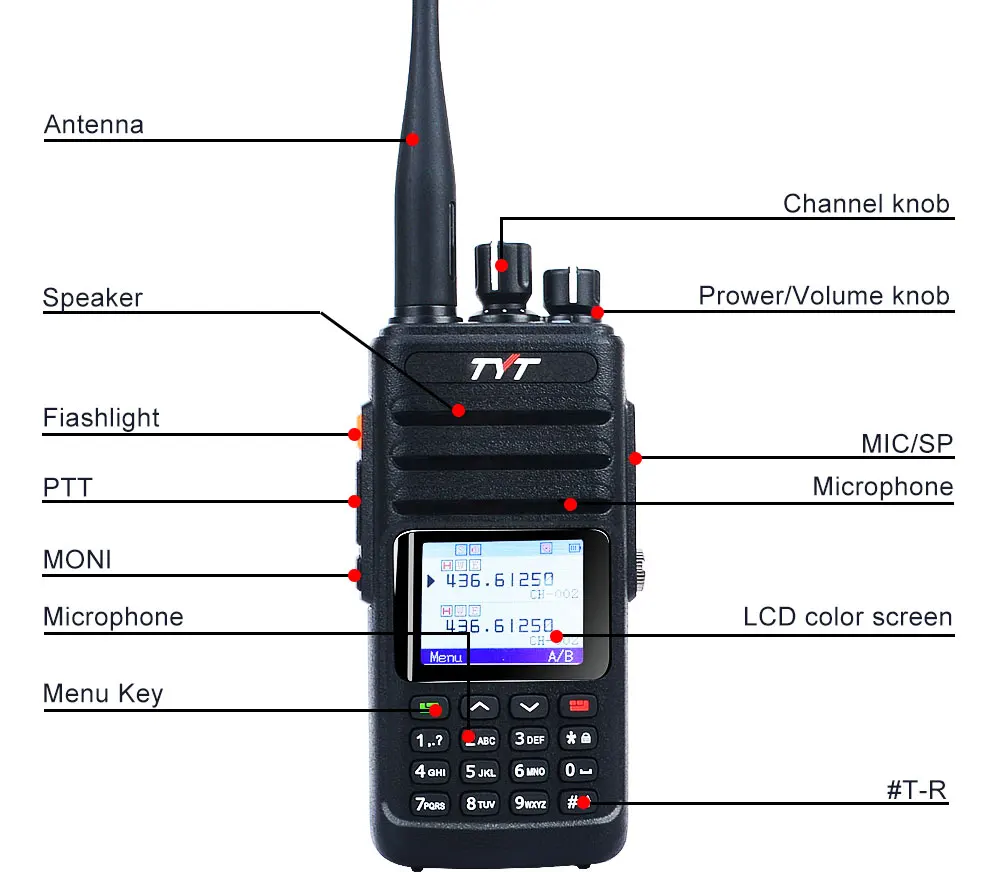

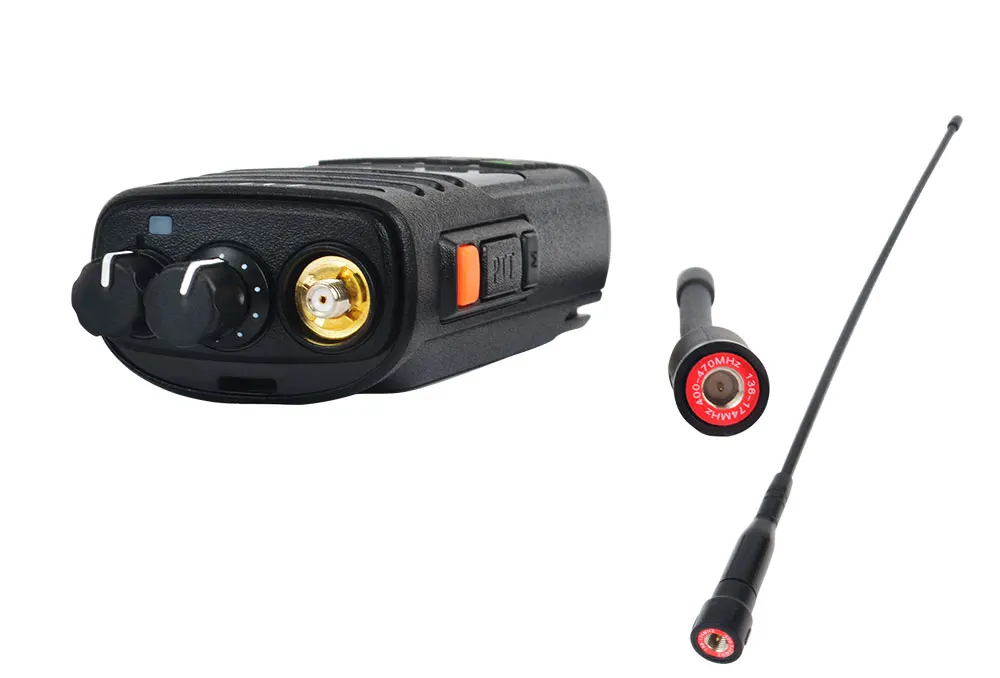

Photos:

Weight

0.3 kg

Dimensions

30 × 30 × 15 cm
